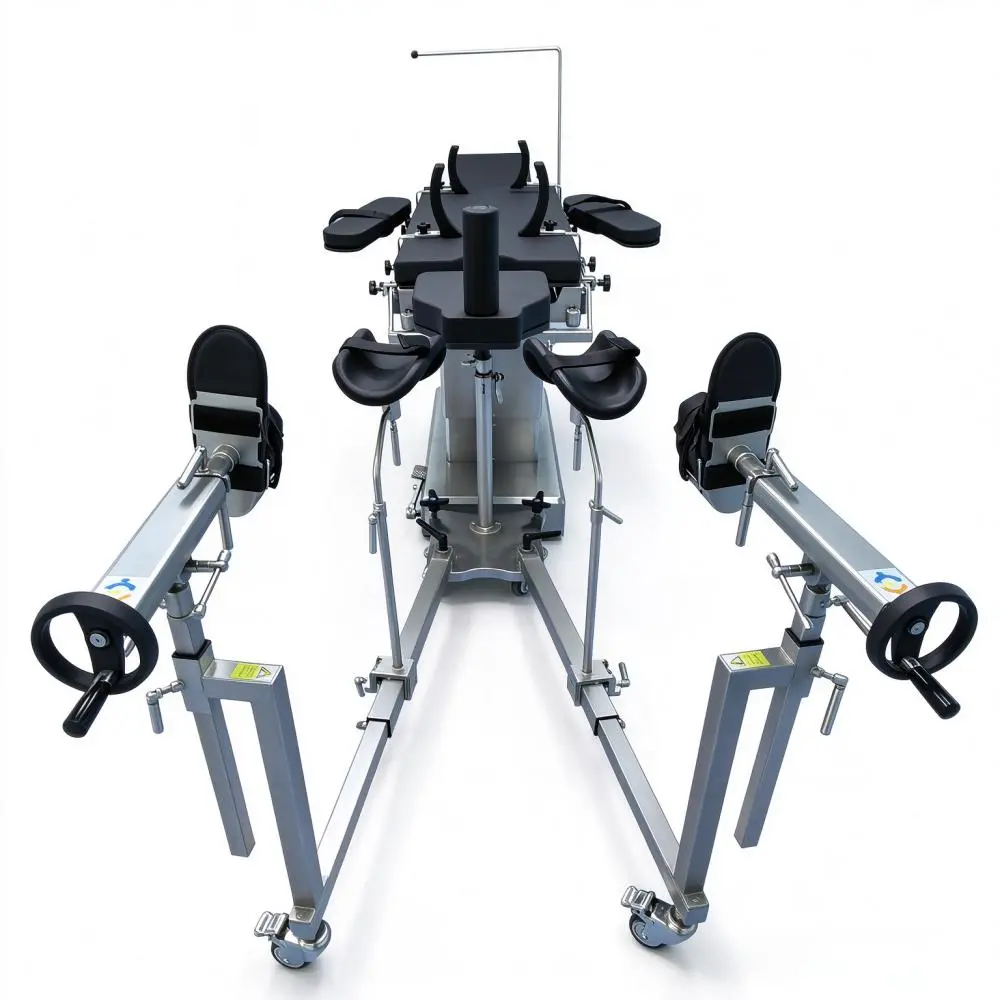

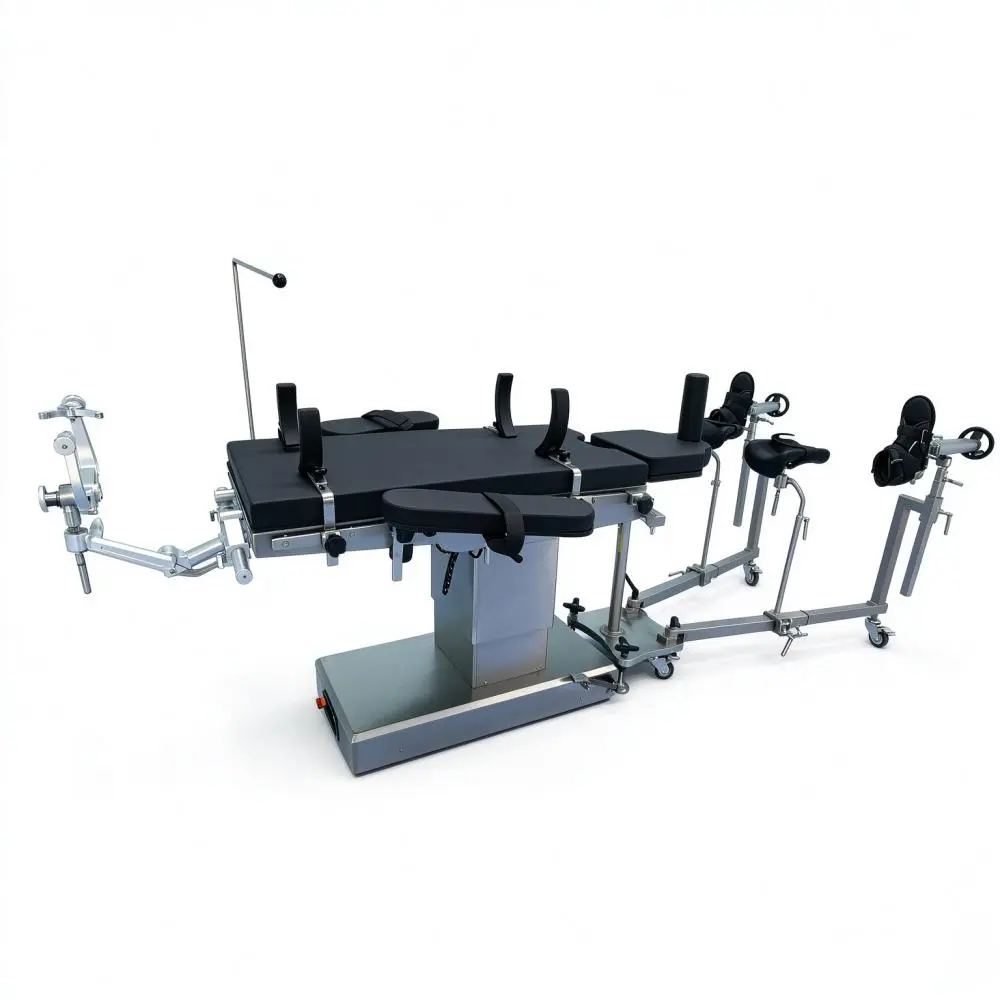

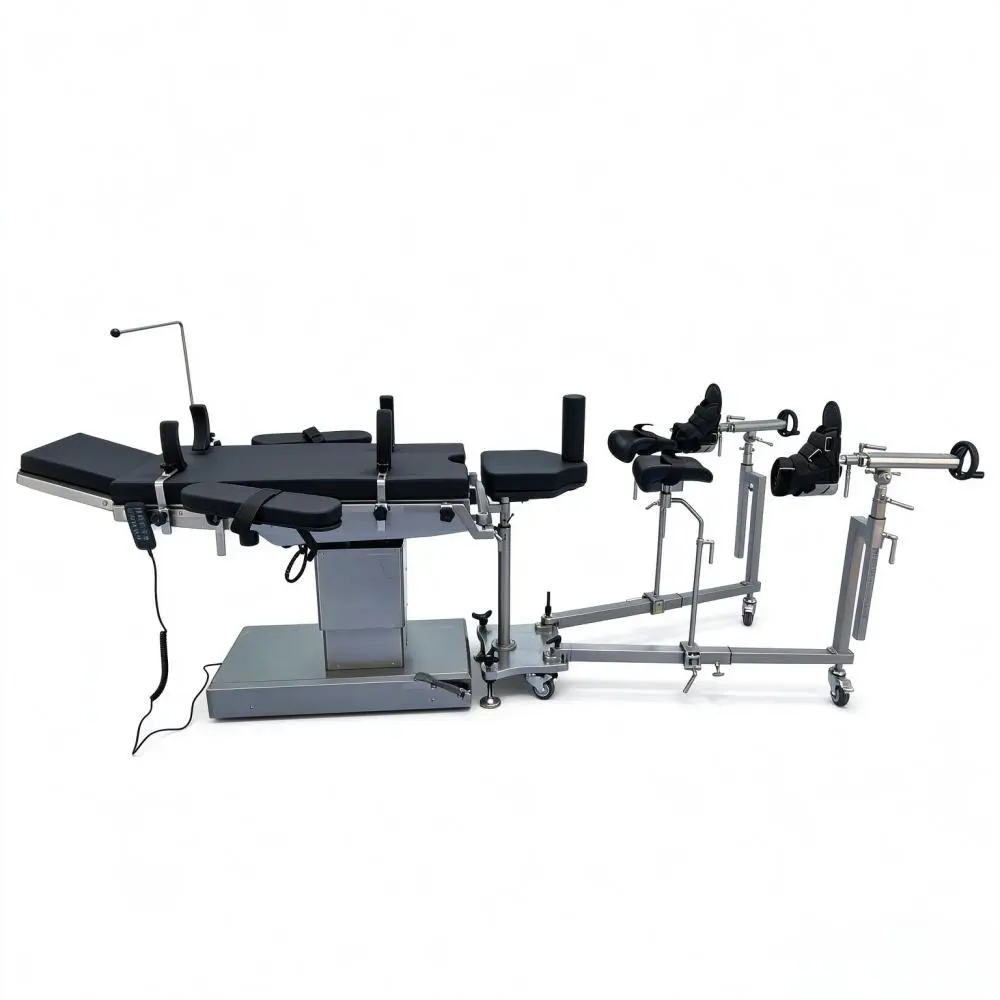

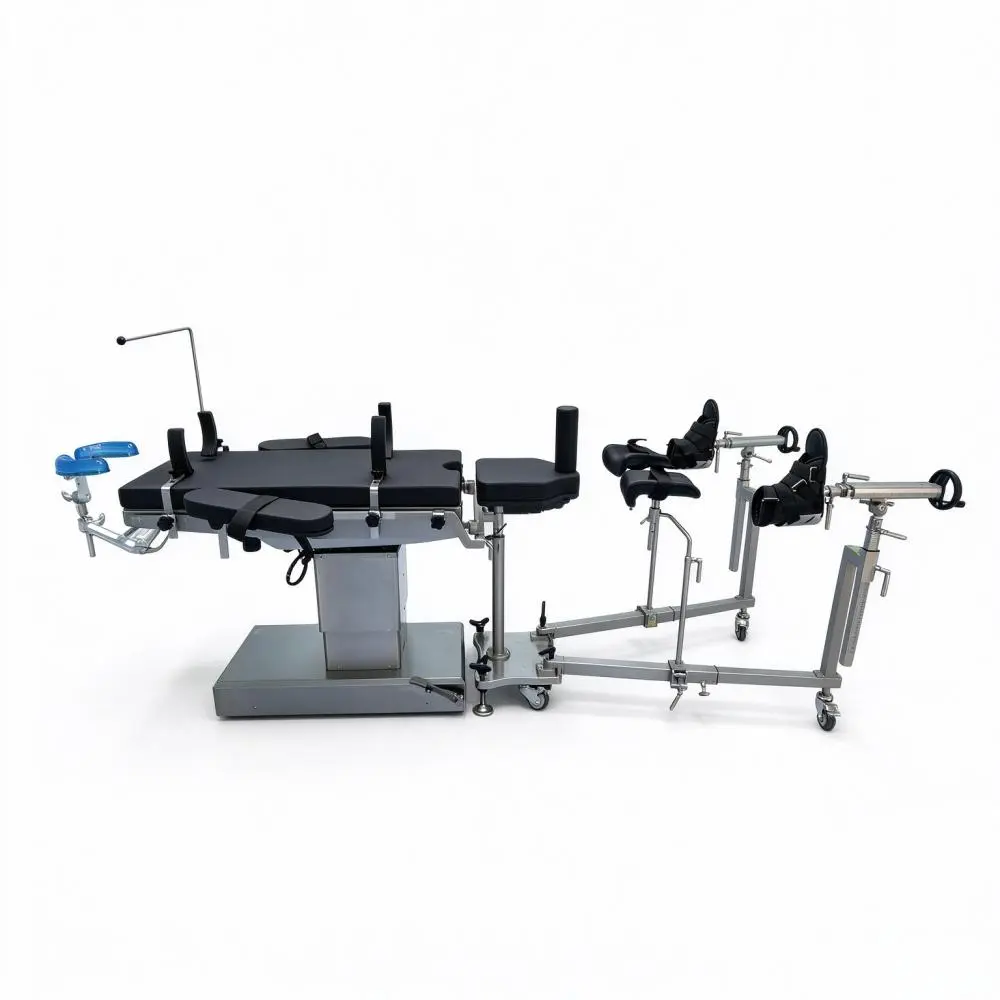

Electric 5-Function Operating Table With Orthopedic Traction Frame

Operating Table With Orthopedic Traction Frame is a full surgical set for operating rooms.

Tabletop panels are made of acrylic (X-ray translucent). The table surface utilizes shock-absorbing, insulating materials. Equipped with Jiecang motors.
Product Function: Suitable for surgeries in thoracic/abdominal surgery, urology, anorectal surgery, etc.; combines the advantages of similar products for ease of operation.
Utilizes high-quality electric actuators; load capacity ≥300kg; operates on safe 24V DC power.
Equipped with an emergency power supply; base features a leak-proof design; automatically switches to backup power to ensure normal operation during AC power outages.
Base steel plate thickness: 2.5mm.
Plug type: Customizable according to customer requirements. Manufactured in strict accordance with the company's quality inspection manual. Exterior constructed from 304 stainless steel; the unit consists of three main parts: a mobile base, a lifting column, and the tabletop. The tabletop is constructed from shock-absorbing, insulating materials and comprises a head section, back section, kidney bridge, seat section, leg section, armrests, anesthesia screen frame, waist/shoulder supports, and leg supports to accommodate standard surgical positioning.
The mattress features memory foam with a waterproof cover, allowing it to conform to the patient's body shape.
Alternatively, a one-piece molded polyurethane mattress is available. The seamless tabletop design facilitates easy cleaning and protection.
Packaging dimensions: 1350 x 700 x 850 mm.

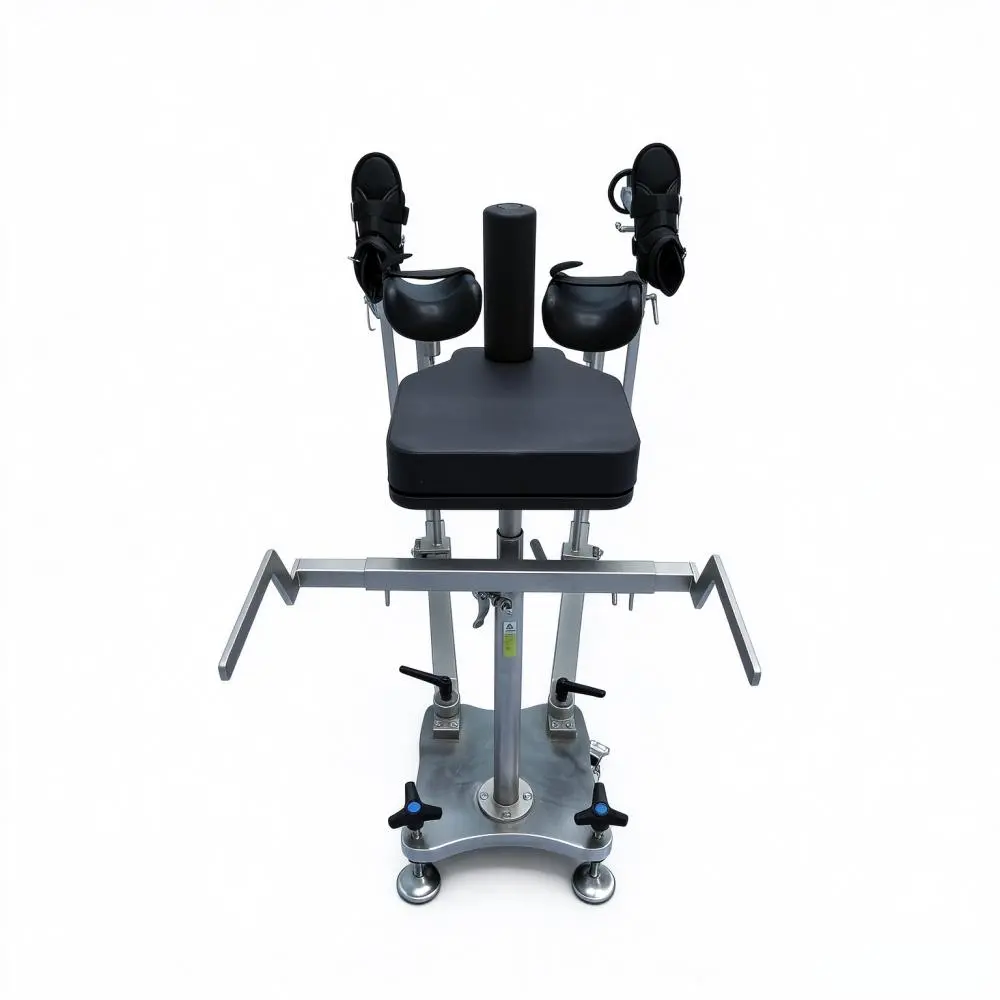

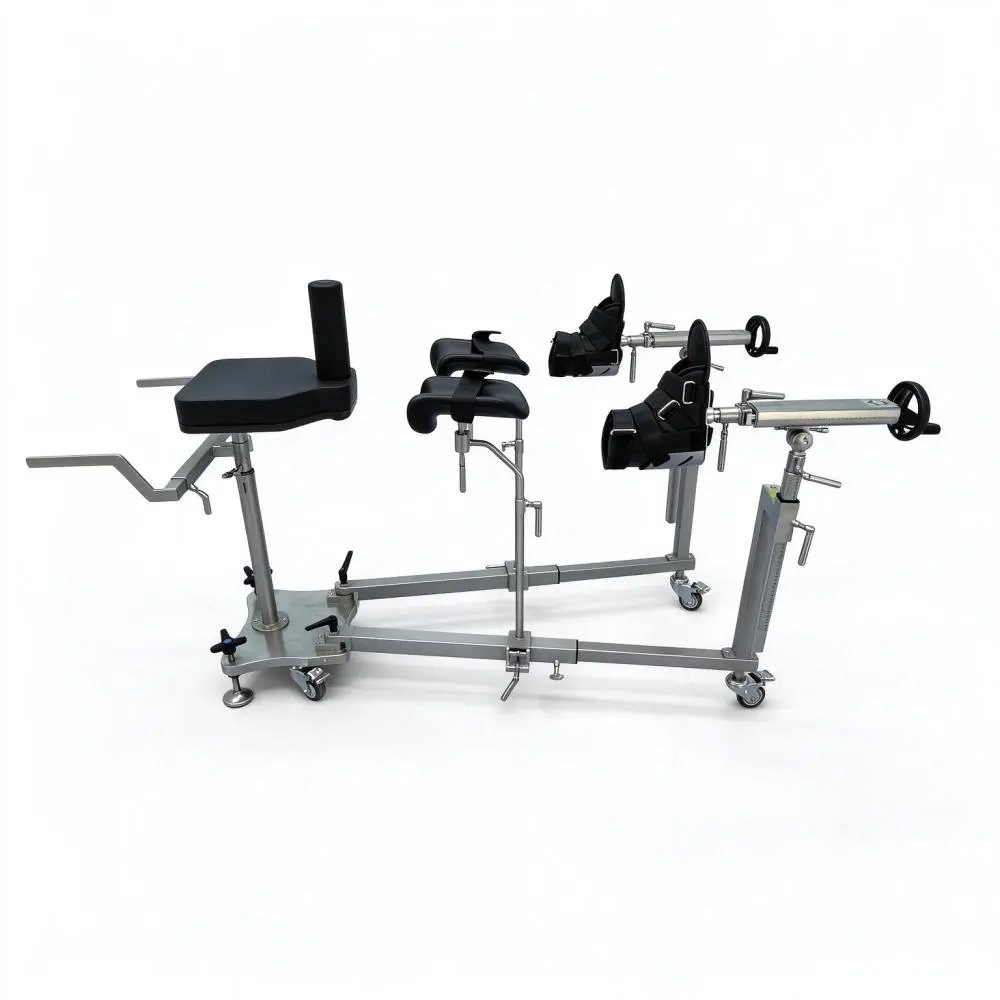

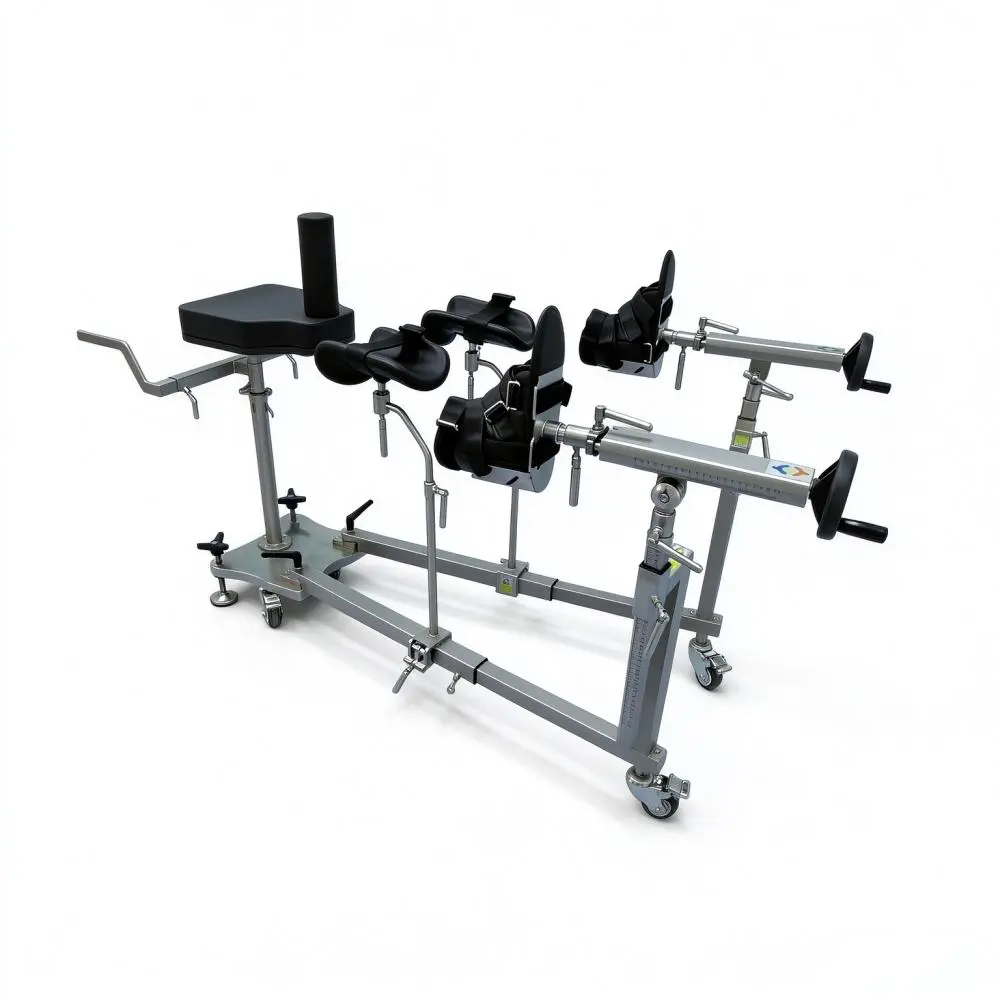

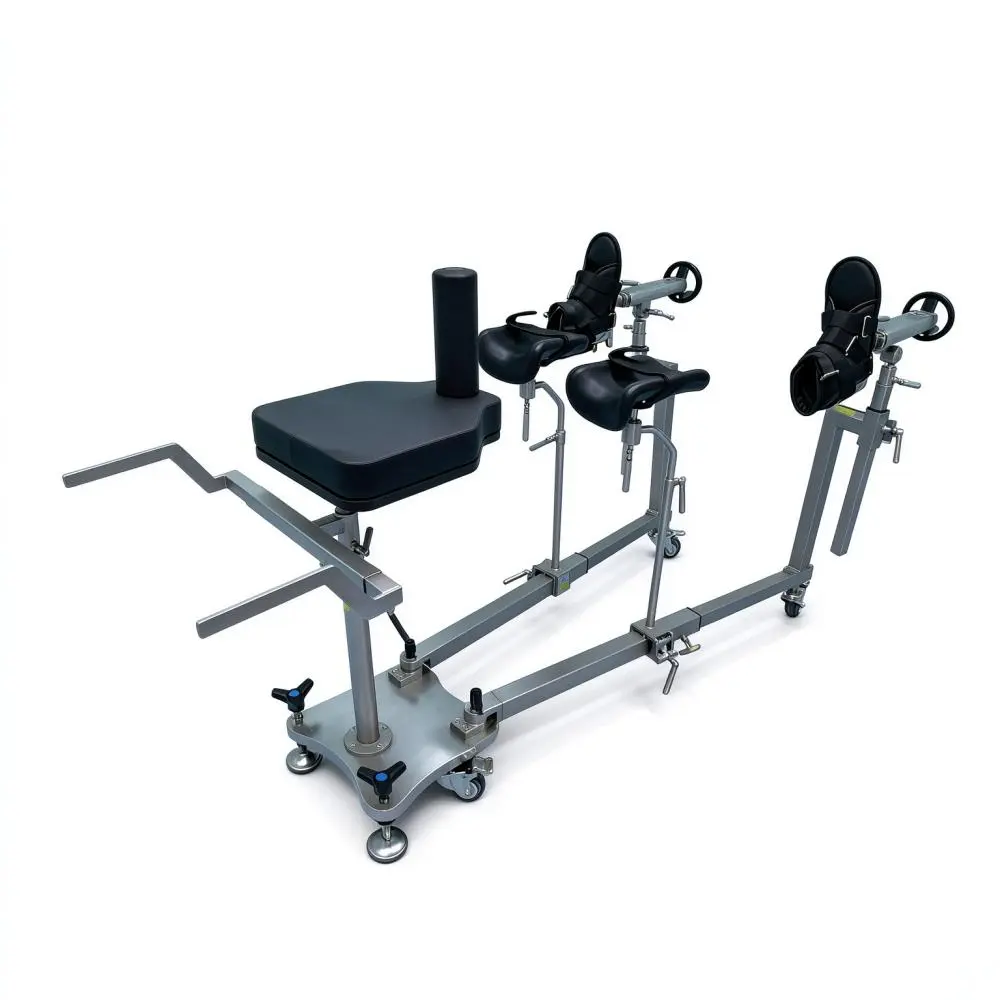

Orthopedic Traction Frame:
1. The traction frame features a unique mechanical design compatible with any type of operating table.
2. Constructed entirely from 304 stainless steel; key angle-adjustment points utilize face-gear locking technology, and critical components are precision-cast as single-piece units.
3. Fully compatible with C-arm systems, allowing for unobstructed access from any angle without interference.
4. The traction unit rotates 360°, facilitating precise positioning for various surgical angles.
5. The upright column features a quick-lock mechanism to save setup time and ensure rapid positioning.
6. The stable, reliable base is equipped with locking casters, allowing for quick positioning and easy mobility. Seat height adjustment range: 745–1060 mm (excluding cushion)
Outward spread of main support arms: ≥220°
Traction mechanism horizontal displacement (telescopic rod travel): ≥520 mm
Traction mechanism vertical displacement: ≥400 mm
Traction mechanism horizontal rotation angle: 360°
Traction mechanism vertical rotation angle: 190°
Traction boot rotation angle: 360°
Traction boot pulling force: 450 N
Traction travel: ≥200 mm
Leg support displacement: ≥500 mm
Perineal post length: ≥230 mm
Perineal post outer diameter: ≥80 mm
Traction frame length (adjustable): 1110–1630 mm
Maximum load capacity: 200 kg
