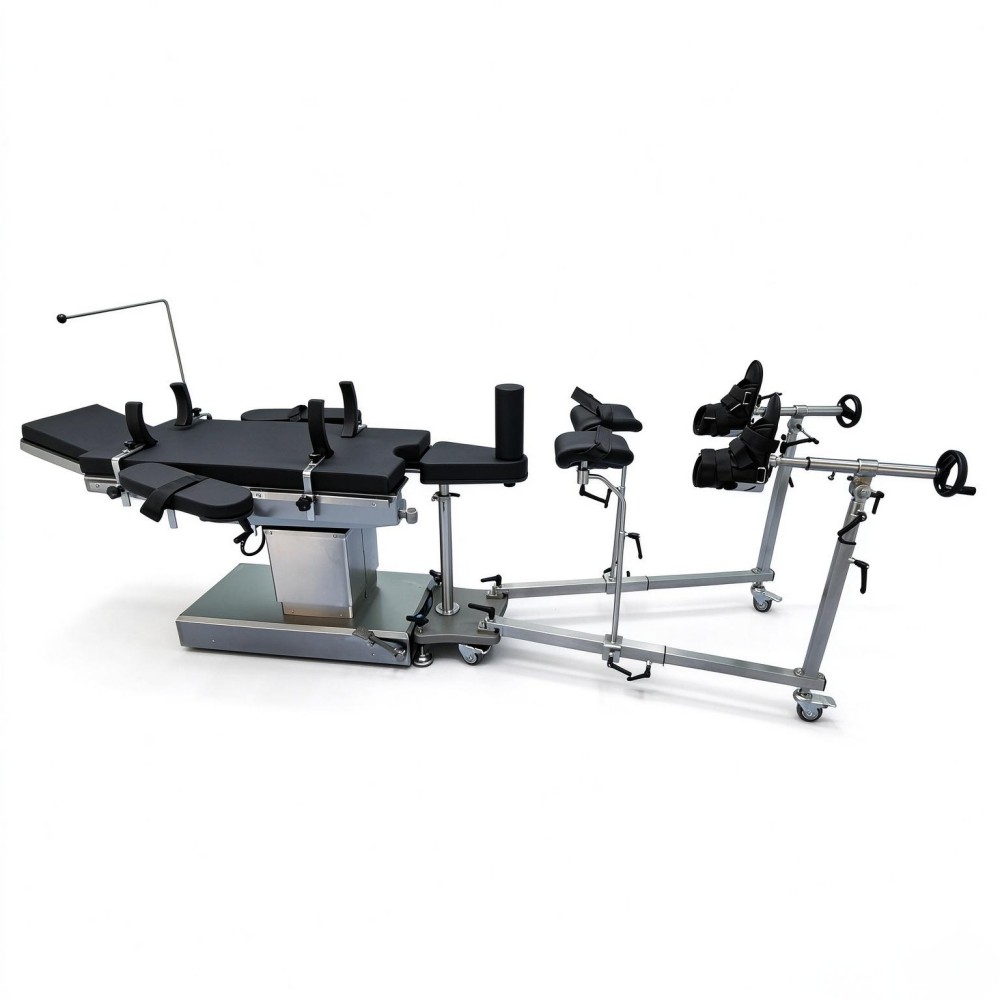

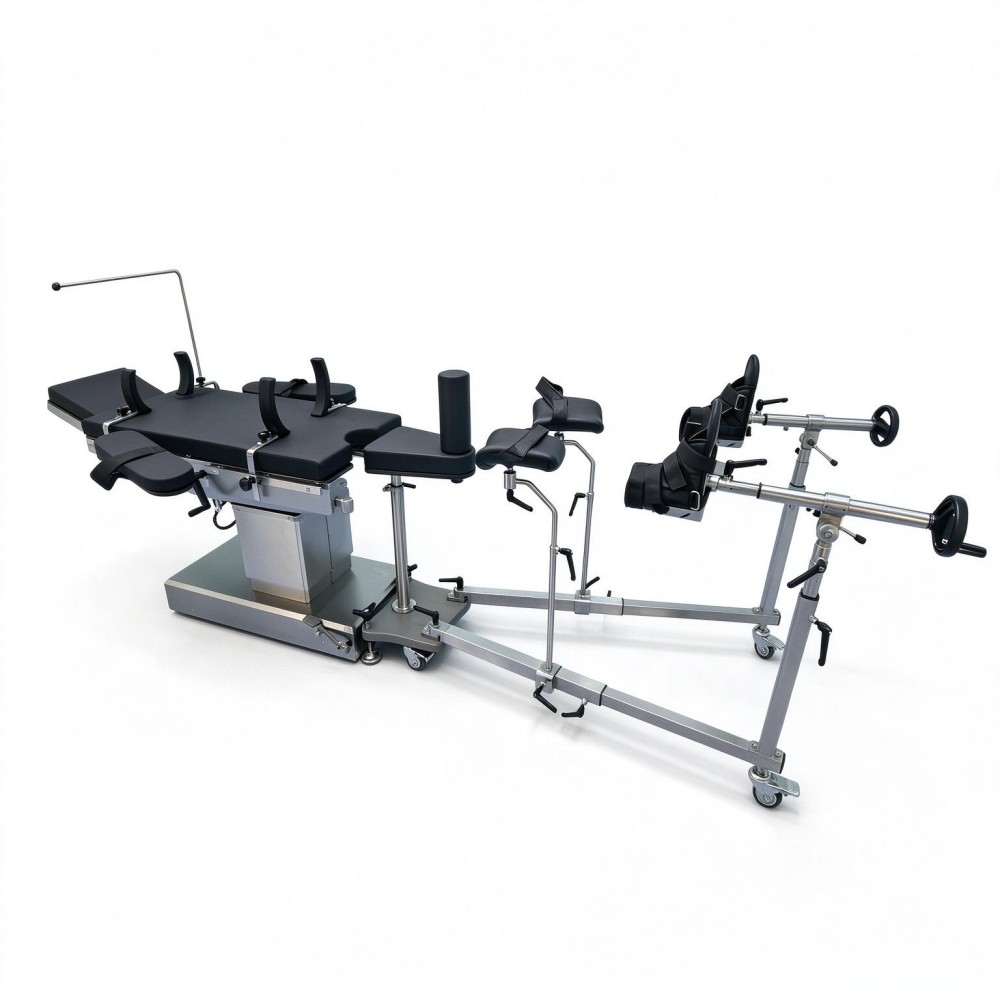

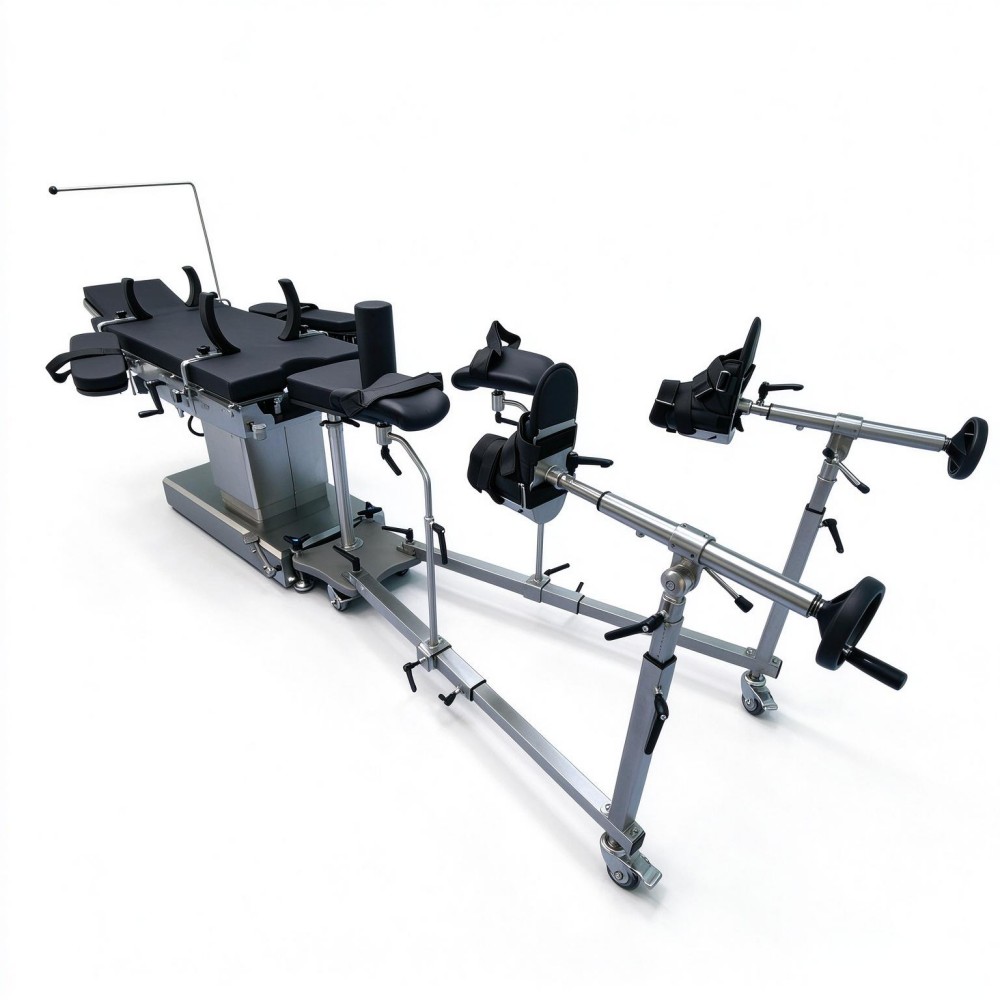

orthopedic operating table with traction frame

Advantages of orthopedic operating tables equipped with traction frames:

Tabletop panels are made of acrylic (X-ray translucent); the surface utilizes shock-absorbing, insulating material.
Product Functions: Suitable for surgeries in thoracic/abdominal surgery, urology, anorectal surgery, etc.; combines the advantages of similar products and offers ease of operation.
Utilizes high-quality electric actuators; load capacity ≥300kg; operates on safe 24V DC power.
Equipped with an emergency power supply; base features a leak-proof design; automatically switches to battery power during AC power outages to ensure continued operation.
Base steel plate thickness: 2.5mm.
Plug: Customizable according to customer requirements.
Exterior constructed from 304 stainless steel; overall structure consists of three parts: a mobile base, a lifting column, and the tabletop. The tabletop is constructed from shock-absorbing, insulating materials and comprises a head section, back section, kidney bridge, seat section, leg section, armrests, anesthesia screen frame, waist/shoulder supports, and leg supports to accommodate standard surgical positioning.
The mattress features memory foam with a waterproof cover, contouring to the patient's body.
Alternatively, a one-piece molded polyurethane mattress is available.
The seamless tabletop design facilitates easy cleaning and protection.
Packaging dimensions: 1350 x 700 x 850 mm.

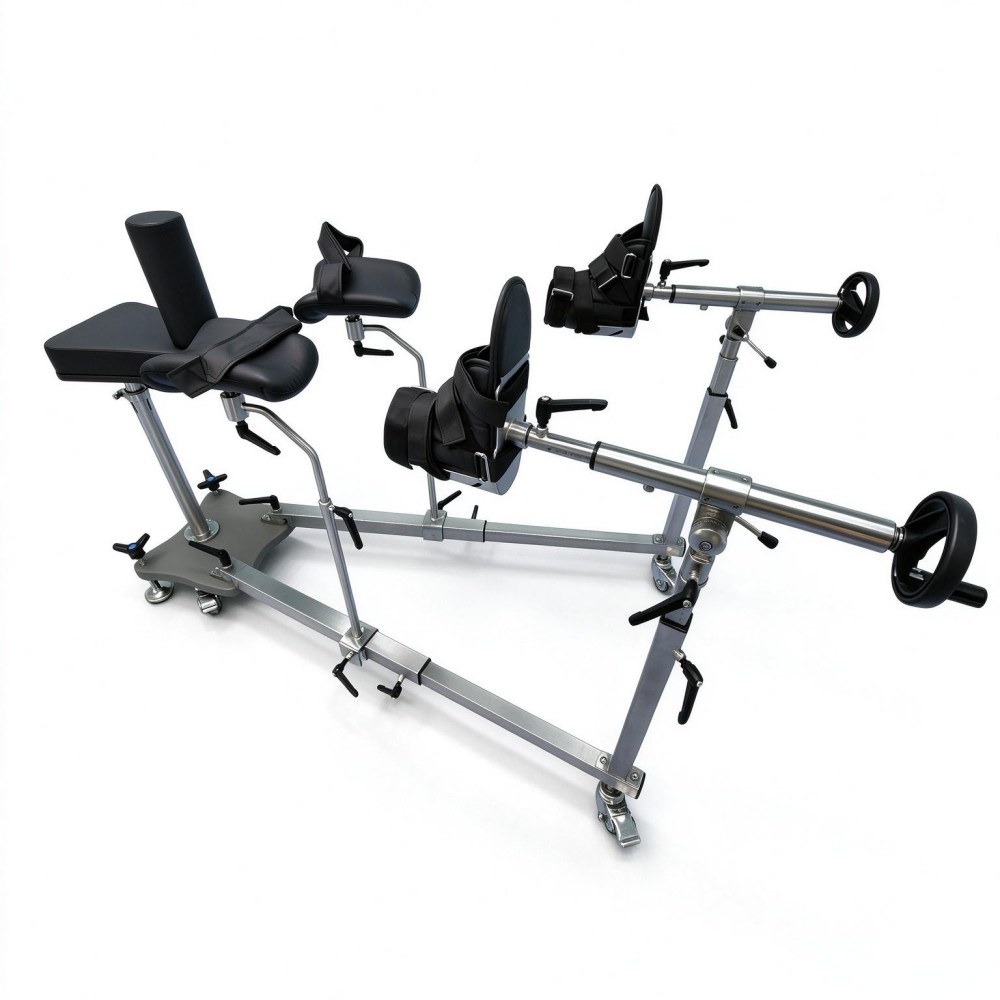

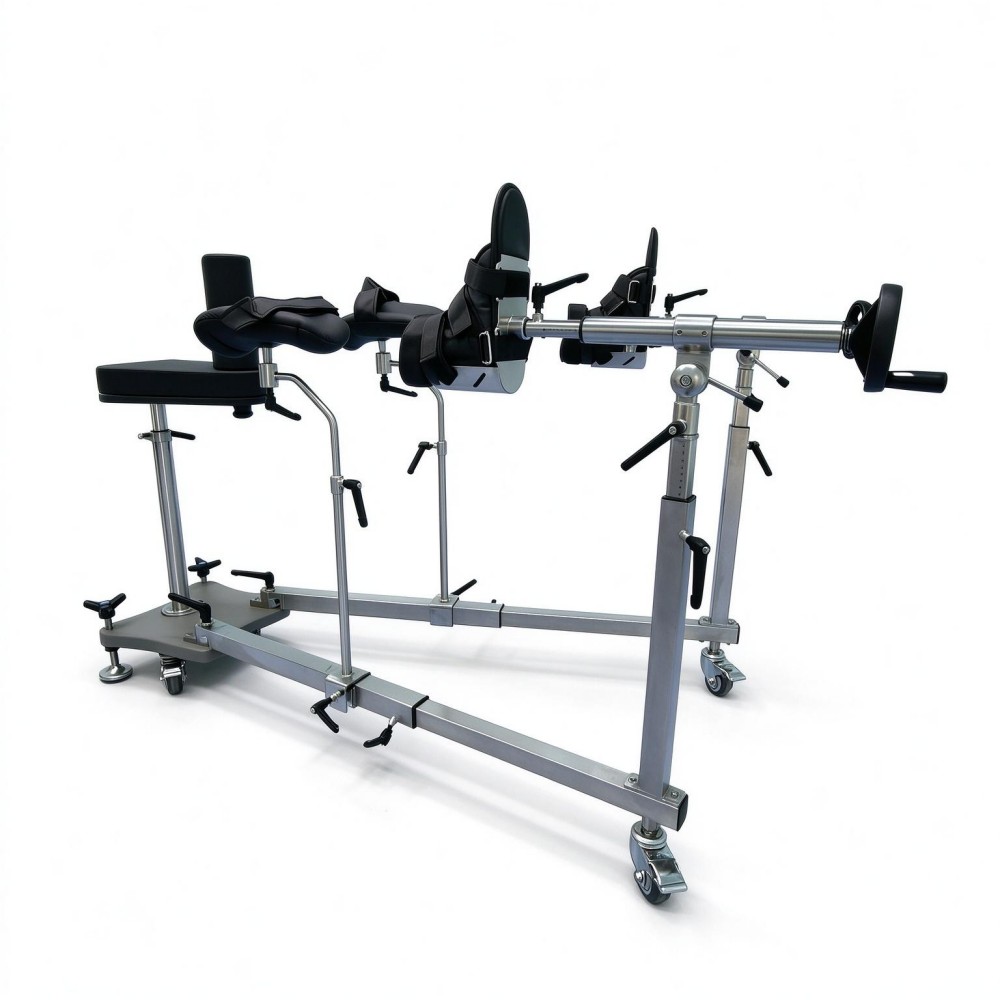

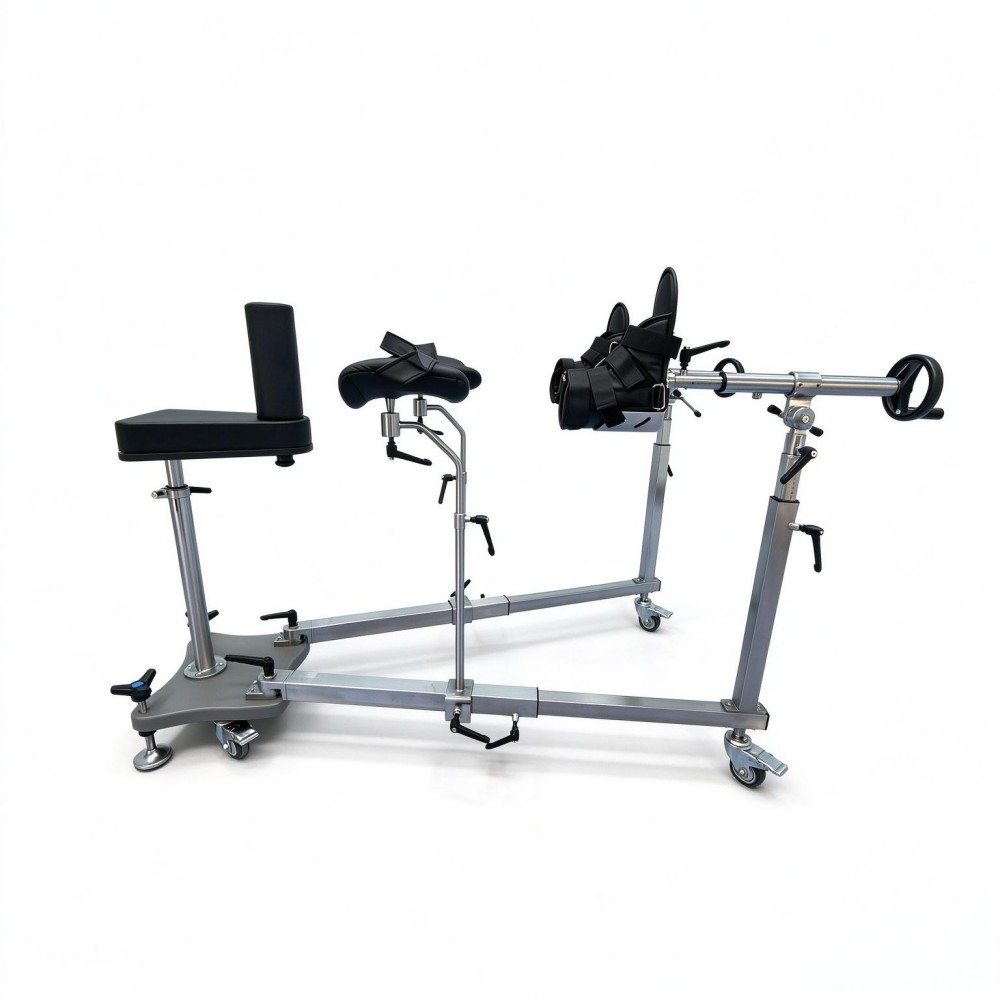

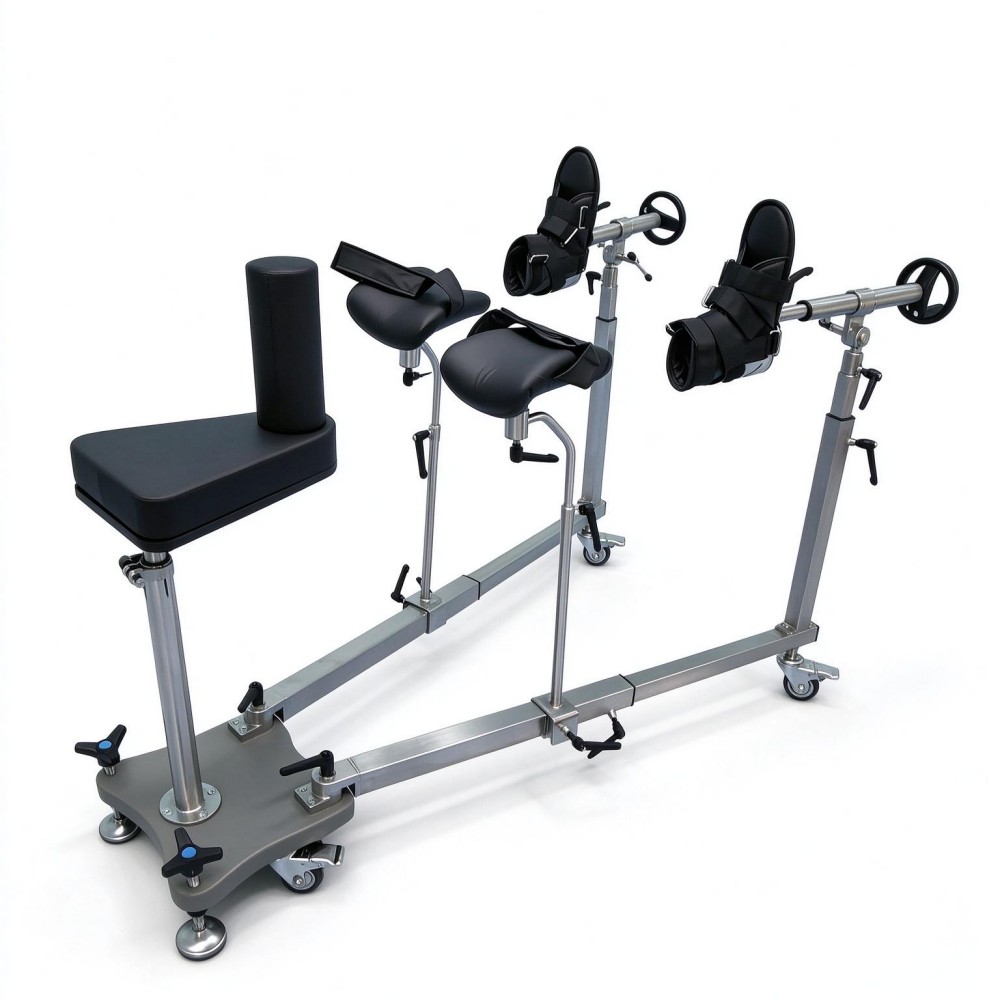

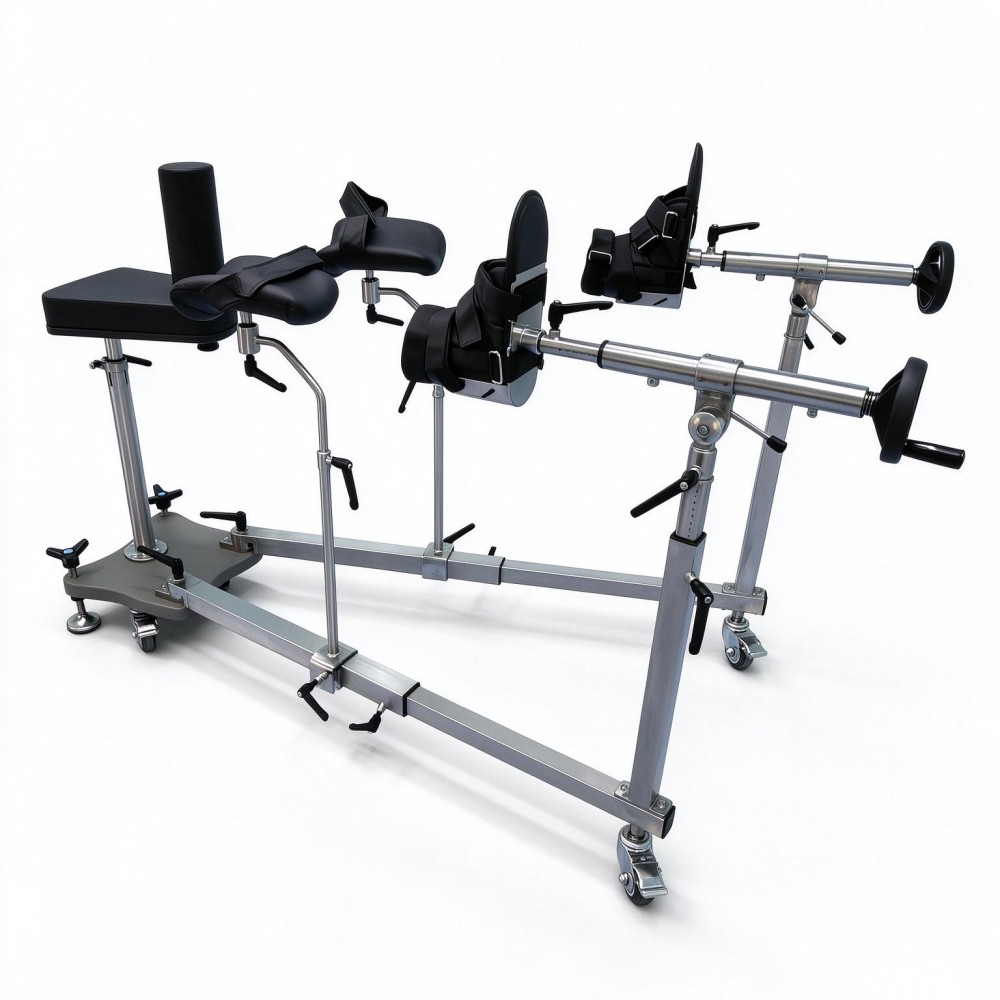

Orthopedic Traction Frame:
I. Primary Use
The orthopedic traction frame is designed for orthopedic procedures involving lower-limb traction, reduction, and fixation. It enables horizontal traction as well as abduction and adduction positioning of the patient's limbs during surgery.
The traction frame is designed to be used in conjunction with an operating table.
II. Product Description
1. The traction frame features a unique mechanical design compatible with any type of operating table.
2. Constructed entirely from 304 stainless steel; key angle-adjustment points utilize face-gear locking technology, and critical components are precision-cast as single-piece units.
3. Compatible with C-arm imaging systems from any angle, ensuring unobstructed access and no blind spots.
4. The traction unit rotates 360°, facilitating precise positioning for various surgical angles.
5. The upright column features a quick-locking mechanism for rapid positioning and time efficiency.
6. The stable, reliable base is equipped with locking casters, allowing for quick positioning and easy mobility. Seat height adjustment range: 745–1060 mm (excluding cushion)
Outward spread of main support arms: ≥220°
Traction mechanism horizontal displacement (telescopic rod travel): ≥520 mm
Traction mechanism vertical displacement: ≥400 mm
Traction mechanism horizontal rotation angle: 360°
Traction mechanism vertical rotation angle: 190°
Traction boot rotation angle: 360°
Traction boot pulling force: 450 N
Traction travel: ≥200 mm
Leg support displacement: ≥500 mm
Perineal post length: ≥230 mm
Perineal post outer diameter: ≥80 mm
Traction frame length (adjustable): 1110–1630 mm
Maximum load capacity: 200 kg
