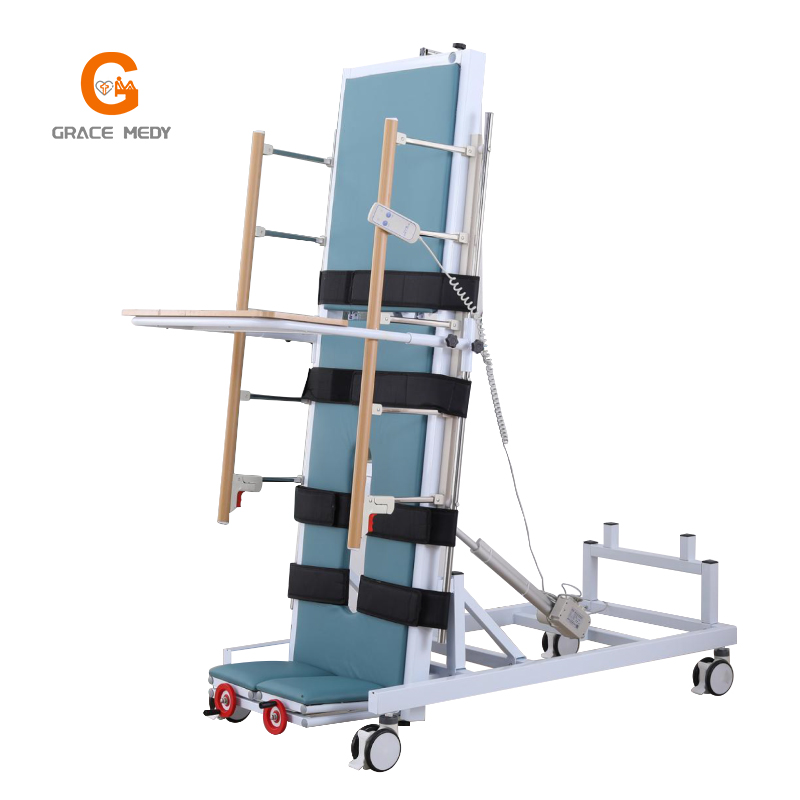

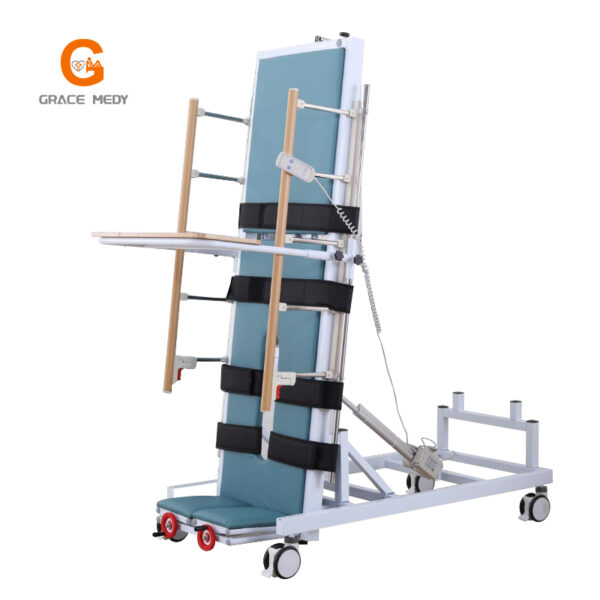

Rehabilitation standing hospital bed
The Standing hospital bed is suitable for stroke recovery, spinal cord injury rehab, and patients with limited mobility, this bed integrates critical rehabilitation into daily care. Key features include adjustable height, secure harness systems, and easy-to-use controls for caregivers. Understand more method of rehabilitative care. Request a quote today!
Type B Standing Hospital Bed Specifications
Materials and Craftsmanship
The bed frame is made of high-quality cold-rolled steel.
The footrest assembly consists of an iron frame and a soft-covered wooden panel. The soft-covered panel is made of wood covered with sponge and artificial leather.
Performance
Maximum thrust of electric actuator: ≥8000N
Number of electric actuators: 1
Number of manual rockers: 1
The electric actuator uses a slow-speed actuator, resulting in a slow standing speed.
The bed's deck should move from horizontal to upright in no less than 30 seconds.
Controller: A momentary control switch and a hand controller are used to adjust the bed's angle.
Number of siderails: 2, 5-position folding aluminum alloy siderails.
Number of casters: 4, each with a single brake.
Number of upper limb exercisers: 1.
Number of fixing straps: 4, with a quick-attach mechanism that locks securely after application and allows for removal and movement.
Number of footrests: 1, adjustable.
Number of training tables: 1
Additional information
| Model Specifications | Type B |
|---|---|
| External Dimensions | 1900*800*575±20mm |
| Bed Dimensions | 1775*520±20mm |
| Footrest Dimensions | 490*310±20mm |
| Standing Angle Adjustment Range | 0°-80°±5° |
| Manual Back Lift Adjustment Range | 0°-65°±10° |
| Emergency Stop | A device that stops the bed's function when the patient stops it. |
| Power Supply | ~220V 50Hz |
| Power Consumption | ≤400VA |
| Fuse | 4A/250V |
| Noise Rating | ≤60dB(A) |
| Maximum Load Capacity | 1700N |
