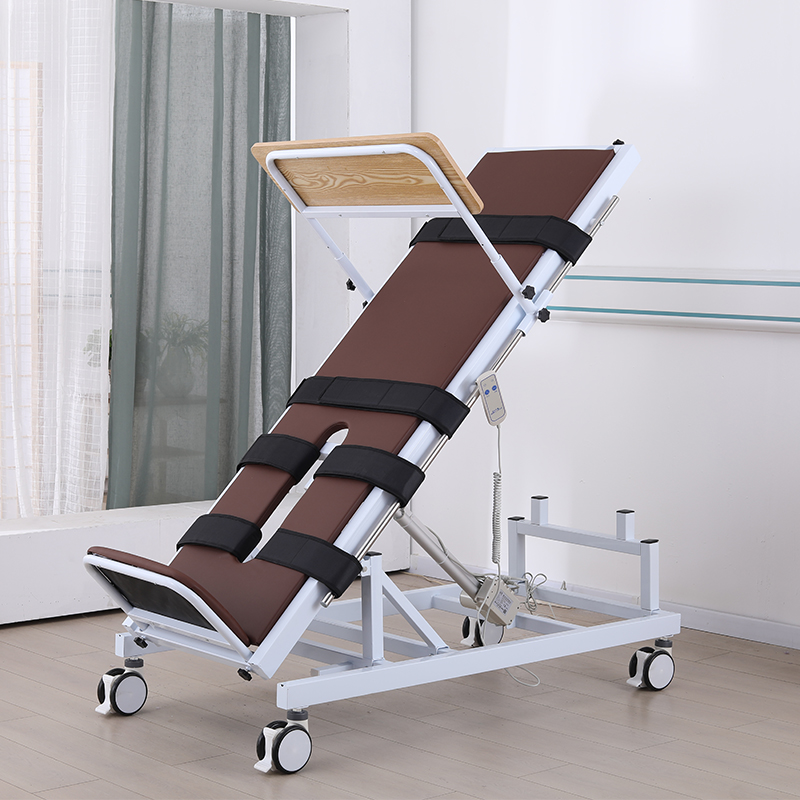

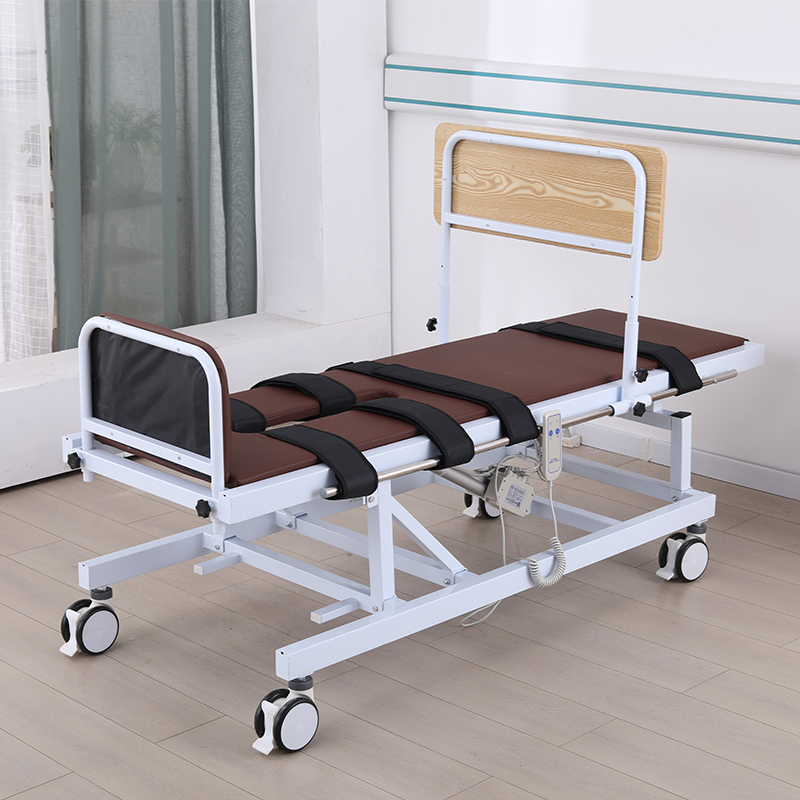

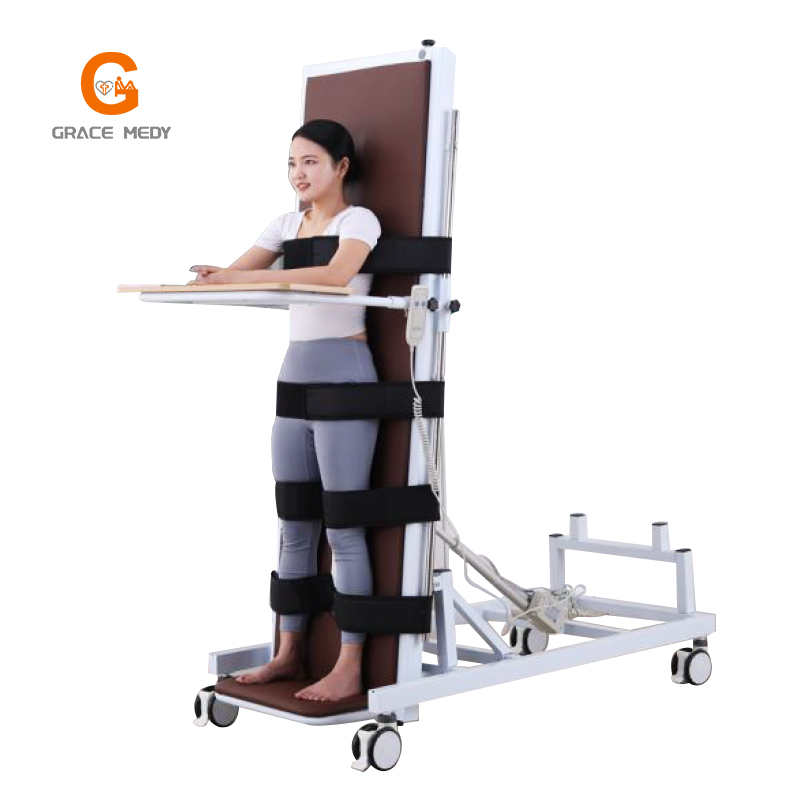

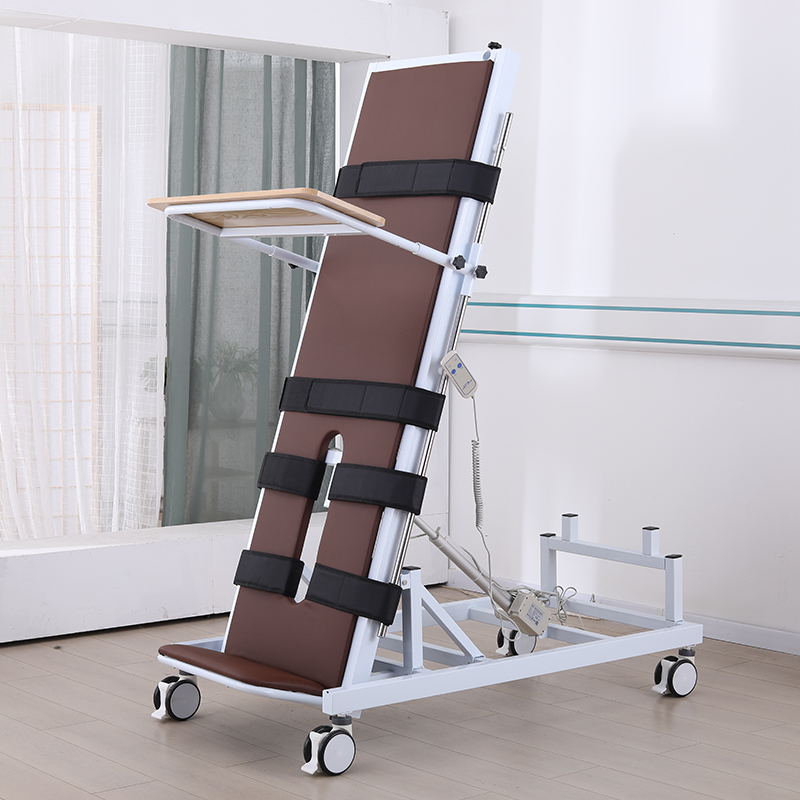

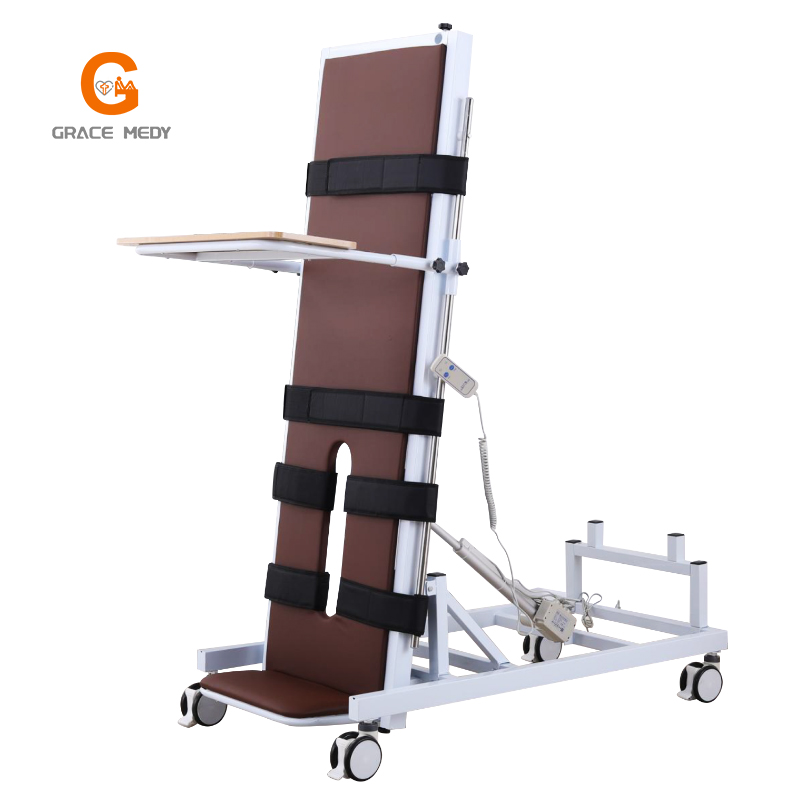

Rehabilitation training standing hospital bed
Transform patient recovery with our advanced Rehabilitation Training Standing Hospital Bed. This innovative medical bed is specifically designed to support early mobilization and assisted standing therapy in clinical and home care settings.Invest in a solution that improves outcomes and accelerates functional recovery. Request a quote today!
Rehabilitation training standing hospital bed specification
Materials and Craftsmanship
The bed frame is made of high-quality cold-rolled steel.
The footrest assembly consists of an iron frame and a padded wood panel. The padded wood panel is made of sponge and artificial leather.
Performance
Number of electric actuators: 1
The electric actuator uses a slow-speed actuator, resulting in a slow standing speed.
The bed's deck should move from horizontal to upright in no less than 30 seconds.
Controller: A momentary control switch and a hand control control system are used to adjust the bed's angle.

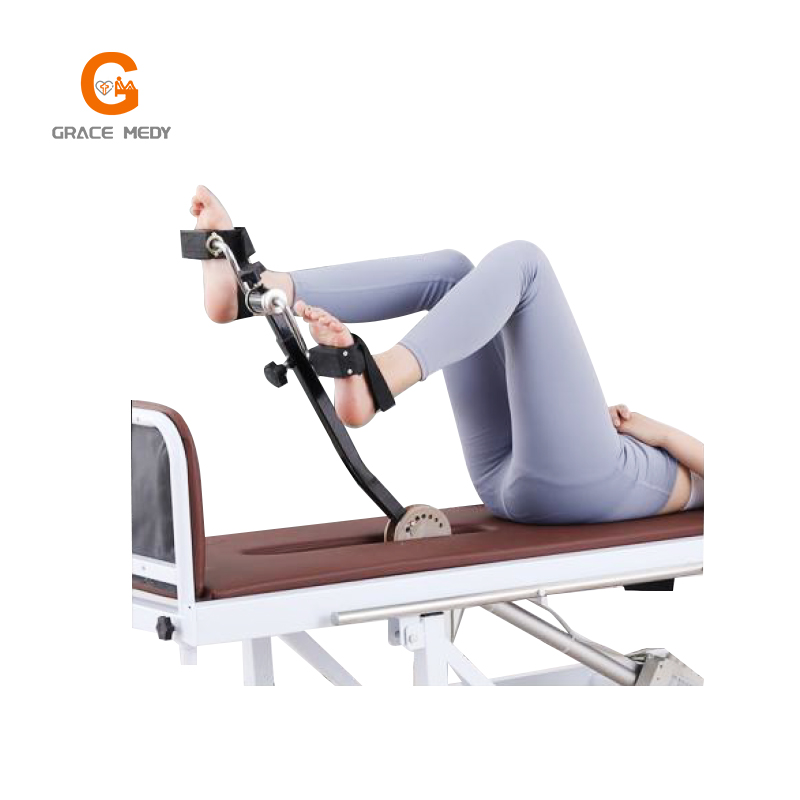

Number of upper limb trainers: 1
Number of casters: 4, each with a single brake.
Number of fixing straps: 4, with a quick-attach mechanism that locks securely after application and allows for removal and movement after release.
Number of footrests: 1, non-adjustable footrest.
Number of training tables: 1
Additional information
| Model Specifications | Type A |
|---|---|
| External Dimensions | 1900*800*575±20mm |
| Bed Dimensions | 1800*545±20mm |
| Footrest Dimensions | 520*300±20mm |
| Adjustable standing angle range | 0°-80° ±5° |
| Maximum electric actuator thrust | ≥8000N |
| Emergency stop function | Device that stops the patient's bed function |
| Power supply | ~220V 50Hz |
| Power consumption | ≤400VA |
| Fuse | 4A/250V |
| Noise level | ≤60dB(A) |
| Maximum load capacity | 1700N |
