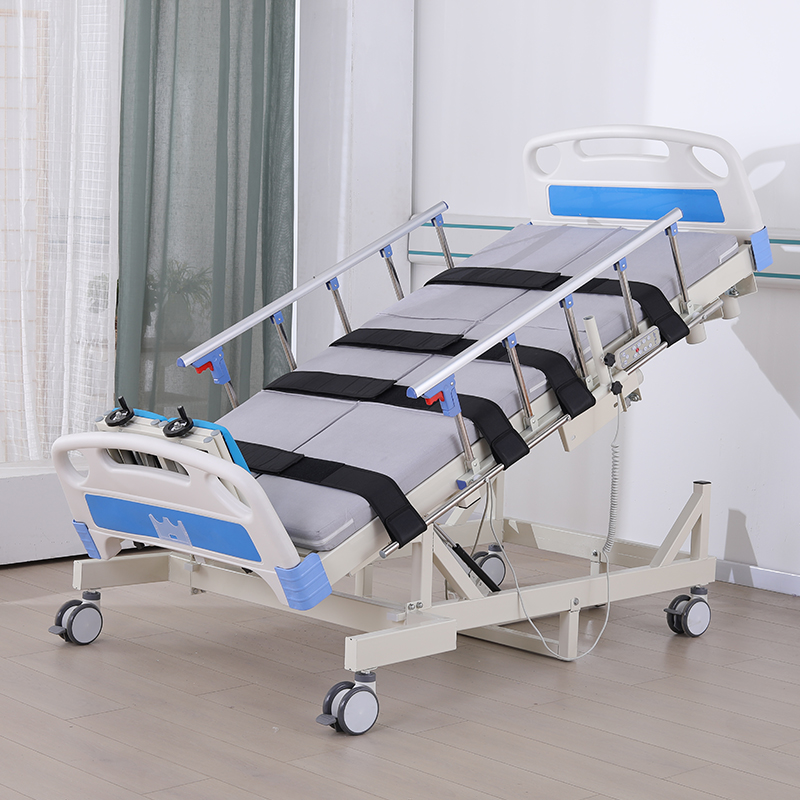

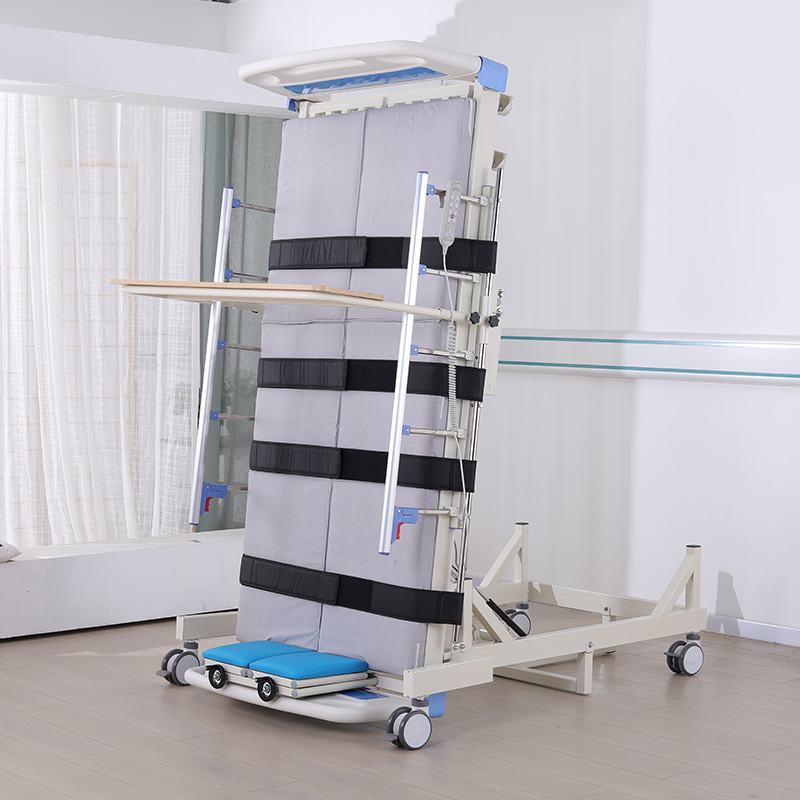

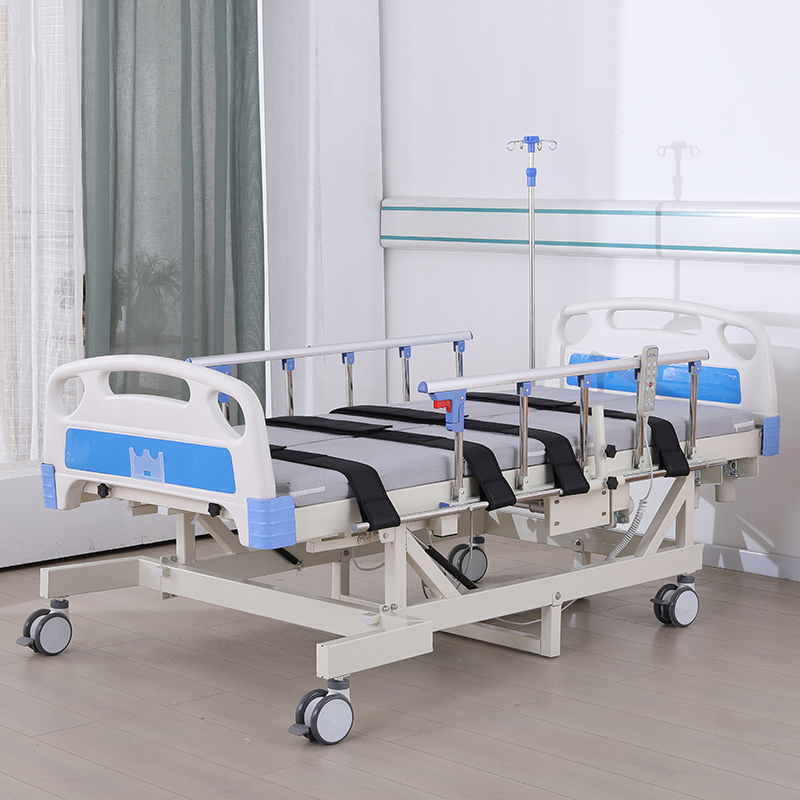

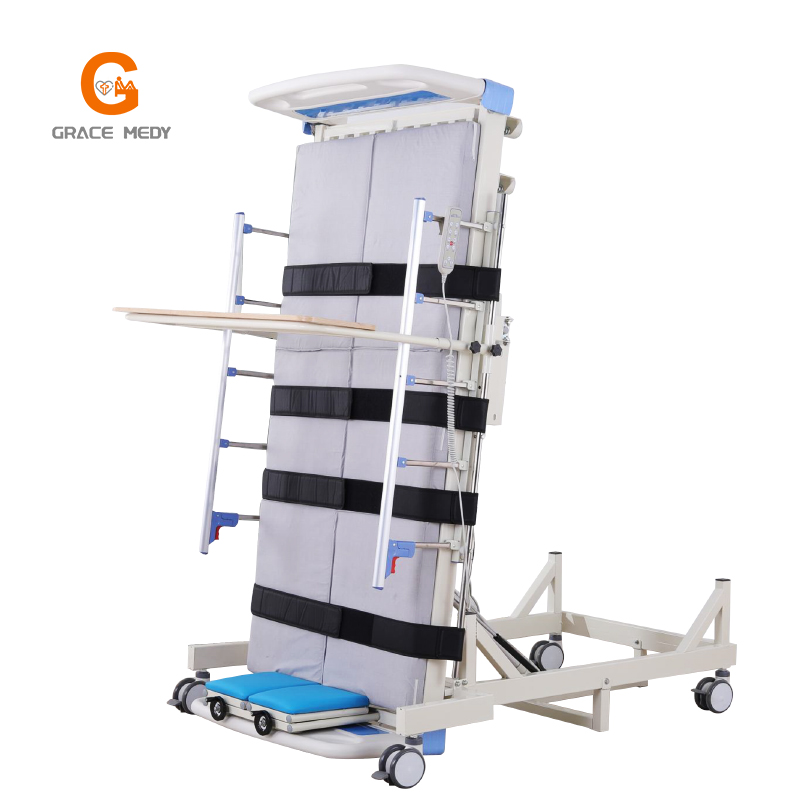

Type A B electric manual hospital standing bed

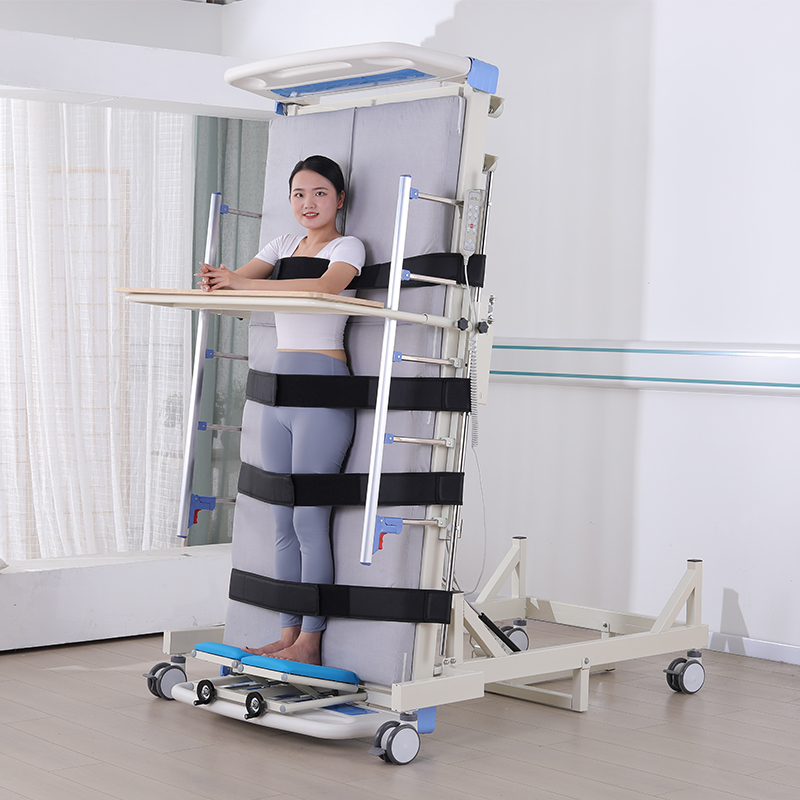

The hospital standing bed supporting upright positioning in bed for highly dependent patients.
Prolonged bed rest and immobility in critically ill patients often lead to severe physical deconditioning, marked loss of muscle mass, and increased muscle weakness—factors that can prolong both ICU and hospital stays¹. In response, early mobilization has been widely recommended to mitigate the long-term physical and psychological effects of extended immobility. However, consistently achieving early standing and weight-bearing with critically ill individuals remains a challenge for clinical staff. The hospital standing bed addresses this issue by enabling one or two caregivers to safely and progressively guide patients toward full upright positioning and weight-bearing, supporting rehabilitation even during the acute phase of critical illness.
Type A B Electric Manual Hospital Standing Ned Materials and Craftsmanship
The bed frame is made of high-quality cold-rolled steel.
The footrest assembly consists of an iron frame and upholstered wood panels covered in sponge and artificial leather.
Type A Performance Specifications
Maximum thrust of electric actuator: ≥8000N (standing position)
Number of electric actuators: 1
Number of manual rockers: 3
The electric actuator uses a slow-speed actuator, resulting in a slow standing position.
The bed's bedboard should move from horizontal to upright position in no less than 30 seconds.
The controller uses an electric control switch, and the hand control controls the system to adjust the bed's angle.
Emergency stop function: A device that allows the patient to stop the bed.
Number of siderails: 2, 5-position folding aluminum alloy.
Number of head and foot rails: 1 each, 1 ABS.
Number of casters: 4, each with a single brake.
Number of fastening straps: 4, with quick-release fastening that locks securely and allows for removal and movement.
Number of footrests: 1, adjustable.
Number of training tables: 1
Type B Performance Specifications
Maximum thrust of electric actuators: Standing ≥ 8000N, Back Raising ≥ 6000N, Leg Curling ≥ 6000N, Turning ≥ 6000N
Number of electric actuators: 4
Low-speed actuators for standing, back raising, turning, and leg curling
The bed's deck should move from horizontal to upright in no less than 30 seconds, and the adjustment time for other deck components should be ≤ 30 seconds.
The controller uses an electric switch, and the hand control controls the system to adjust the bed's angle.
One-touch reset function: Automatically returns the bed to its original position.
Emergency stop function: A device that allows the patient to stop bed functions.
Number of siderails: 2, 5-position folding aluminum alloy.
Number of head and footrests: 1 each, ABS.
Number of casters: 4, with single-piece brakes.
Number of fastening straps: 4, with quick-attachment locks that lock after secure application and allow for removal and movement after release.
Number of footrests: 1, adjustable.
Number of training tables: 1
Additional information
| Model | Type A(manual) |
|---|---|
| External Dimensions | 2130*1260*540±20mm |
| Bed Dimensions | 1960*900±20mm |
| Footboard Dimensions | 490*300±20mm |
| Type A adjustable | Electric Standing Angle Adjustment Range: 0°-80°±5°, |
| Type B adjustable | Standing Angle Adjustment Range: 0°-80°±5°, |
| Mattress | 4cm brown + 2cm latex |
| Power supply | ~220V 50Hz |
| Power consumption | ≤400VA |
| Fuse | 4A/250V |
| Noise | ≤60dB(A) |
| Maximum load capacity | 1700N |
