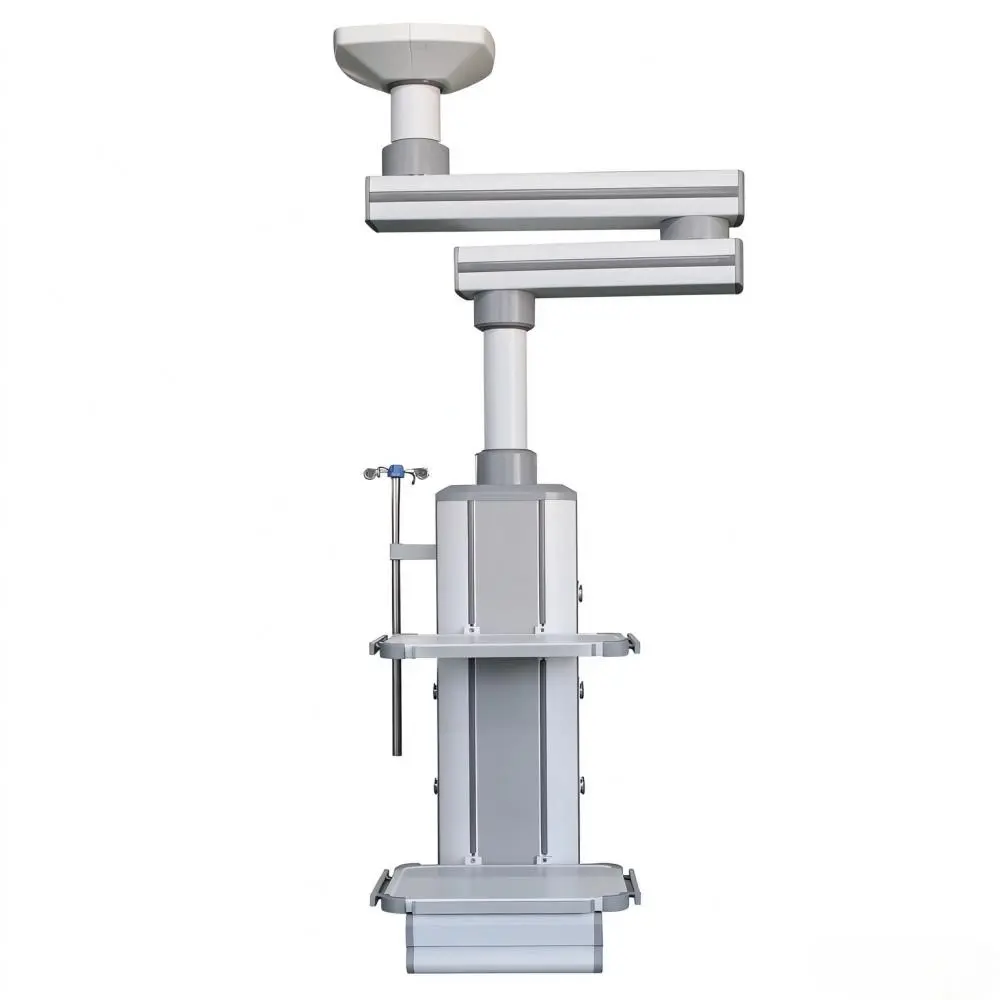

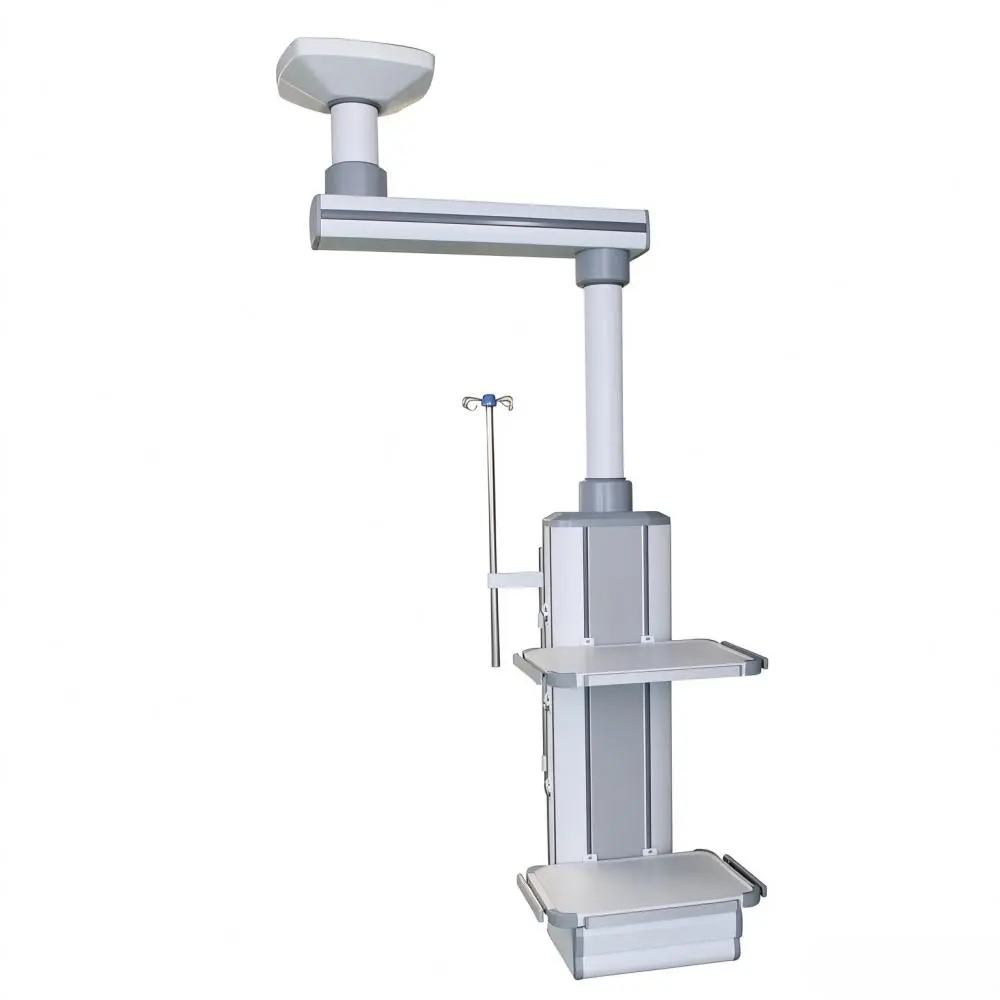

Medical Single/Dual-arm electric surgical pendant
Our electric surgical pendant is built for hospital operating rooms. Its high-strength enclosed aluminum alloy body resists corrosion and is easy to sanitize. The thick steel arm delivers stable load capacity. Separated gas and electric compartments simplify maintenance, with hot-swappable gas terminals and color-coded outlets to avoid wrong connections. It holds medical devices and manages gas, power and communication utilities during surgery.
Medical Single/Dual-arm electric surgical pendant advantages:
1. The main body of the pendant is constructed from high-strength aluminum alloy and features a fully enclosed design; it is corrosion-resistant, durable, easy to clean and disinfect, and effectively prevents contamination.
2. The horizontal arm is made of extra-thick (13mm) steel, providing superior load-bearing capacity and stability without wobbling (compared to the 7–10mm thickness typically used by other manufacturers).
3. All gas terminals support "hot-swapping" (maintenance while the gas supply is active), reducing future maintenance costs.
Gas outlets and electrical sockets feature distinct colors and shapes to minimize the risk of incorrect connections.
Sockets and plugs are rated for over 20,000 insertion/removal cycles.
4. The terminal housing features a three-compartment separated design, allowing for the segregation of electrical and gas components to facilitate customer maintenance.
5. The pendant drawers are made of extruded aluminum alloy and utilize silent, soft-close, push-to-open slides.
A simple press on the drawer front opens it, and another press closes it; the advanced silent mechanism also effectively prevents the drawer from sliding open on its own.
Additional information
| Name | Medical Single-Arm Surgical Pendant/Dual-arm surgical pendant |
|---|---|
| Power supply | AC 220V/50Hz |
| Horizontal arm | ≥900mm, 1 unit |
| Console body | ≥1000mm, 1 unit |
| Gas outlets | Oxygen/Suction (vacuum)/Air (2 of each); German or British standards available |
| Power sockets | National Standard (3-pin + 2-pin) sockets (10A), 8 units; quantity and style customizable |
| Communication ports | Network/Telephone (1 of each) |
| Equipotential grounding terminals | 20A, 2 units |
| Instrument shelves | 550mm x 400mm x 28mm (excluding side rails), 2 units; rounded-corner anti-collision design |
| Drawer | 435mm x 350mm x 145mm, 1 unit; soft-close/rebound slide rails |
| Adjustable IV pole | Φ25, 1 unit |
| Syringe pump holder | Φ25, 1 unit |
| Storage basket | 1 unit |
| Side rails | 25mm x 10mm (international standard), 6 units |
| Quick-connect plugs | Oxygen/Suction (vacuum)/Air (1 of each) |
| Mounting connectors | 3 units |
| Load capacity | ≥80kg |
| Unit weight | 75kg ± 2kg |
