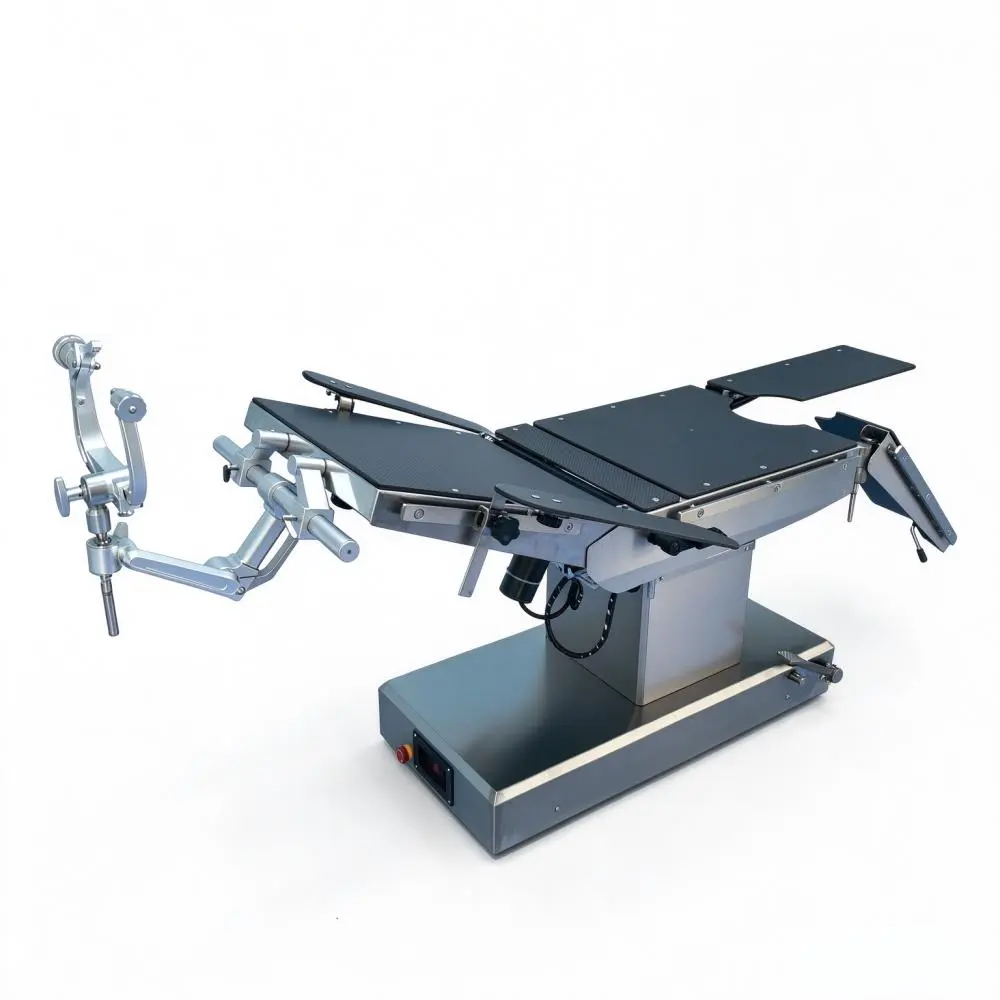

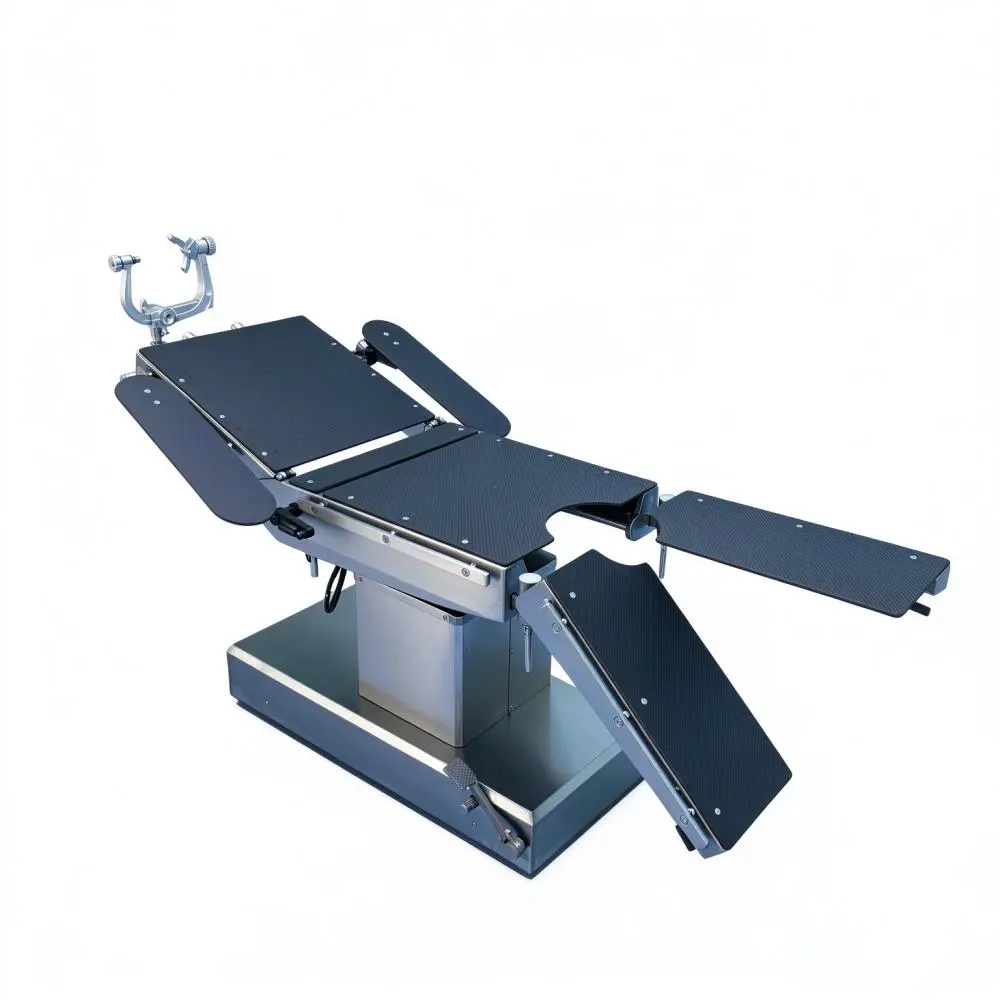

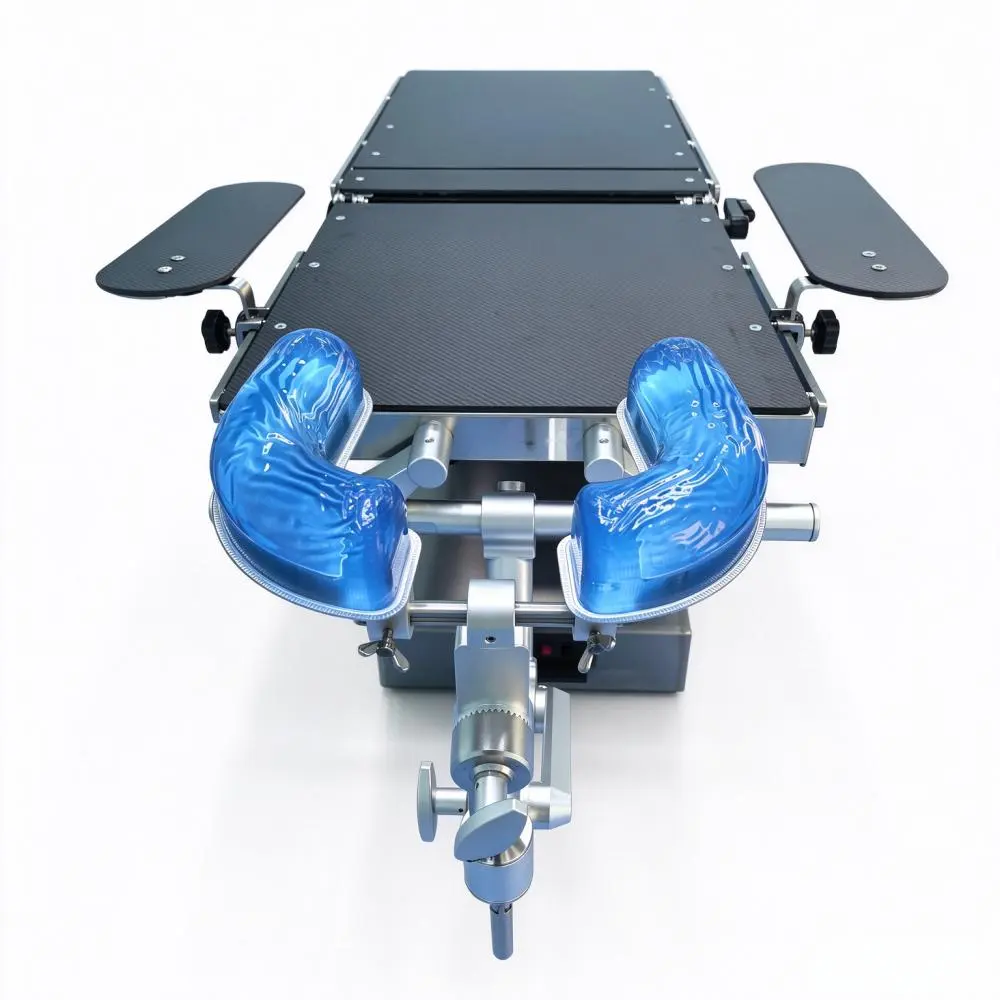

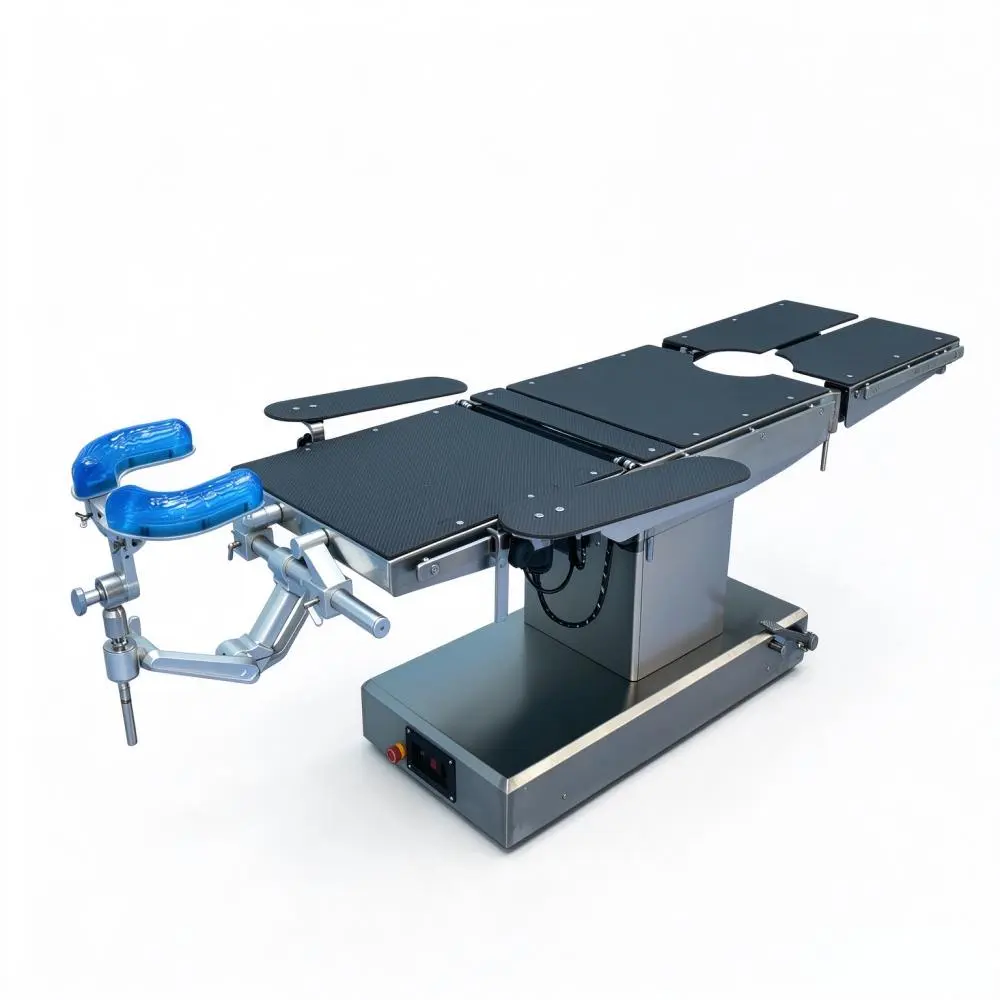

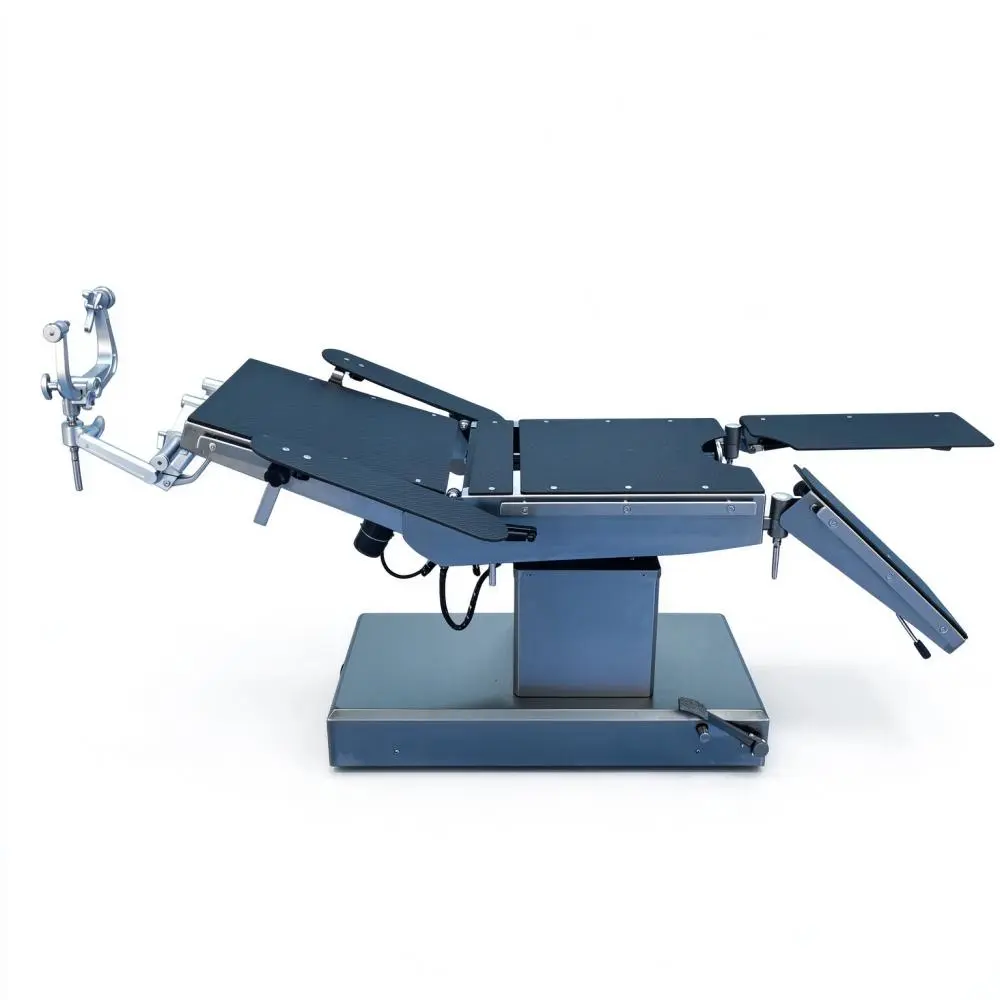

Carbon Fiber O T Table With Cranial Frame
This electric ot table features carbon fiber tabletop with high X-ray permeability. As a professional o t table, it supports multi-angle positioning. The operating table with cranial support system is specially built for neurosurgery and general operations, with backup battery for safe surgery.
This electric ot table is a 5-function surgical platform for hospital operating theatres.
Its tabletop adopts carbon fiber material. It brings excellent X-ray translucency, shock resistance and insulation.
Multiple adjustable motions are available, including back tilt, Trendelenburg, lateral tilt and longitudinal shift.
The head and leg sections can be detached, making patient transfer simple and convenient.
This o t table supports wide adjustment ranges for flexible patient positioning during different procedures.

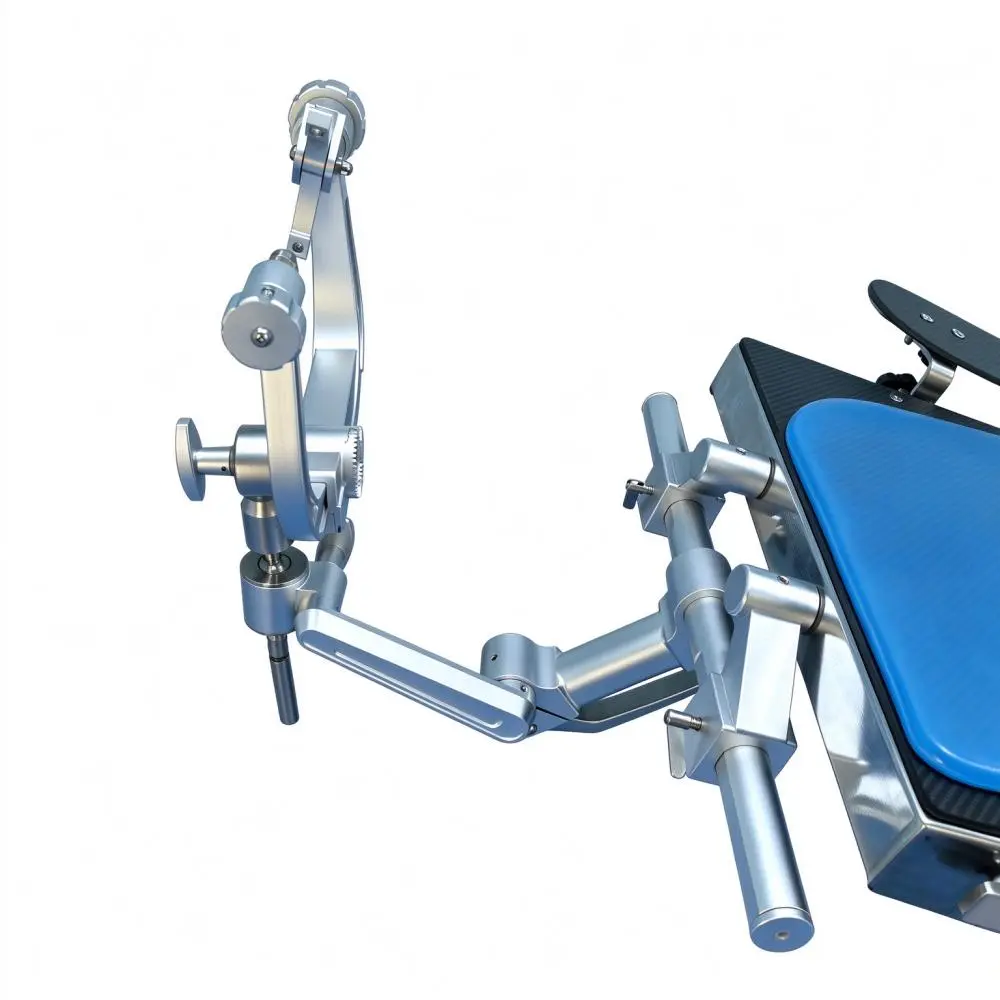

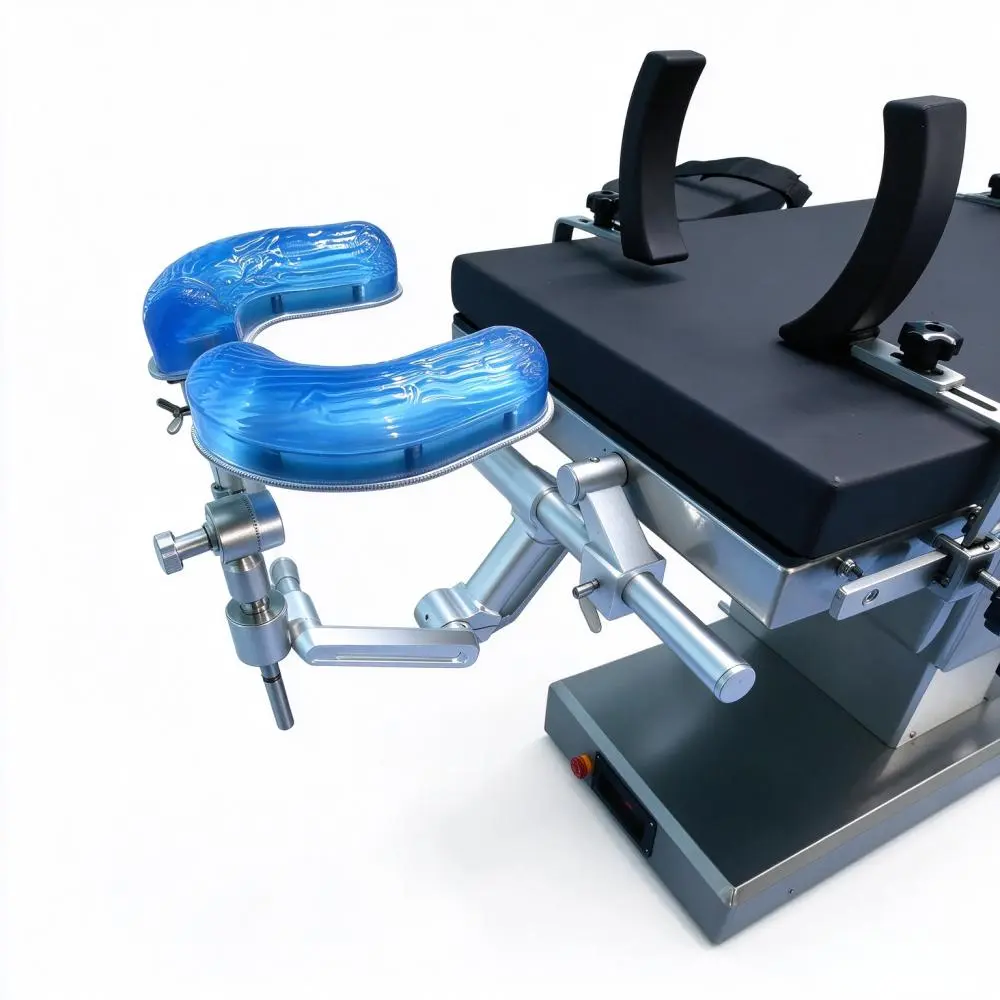

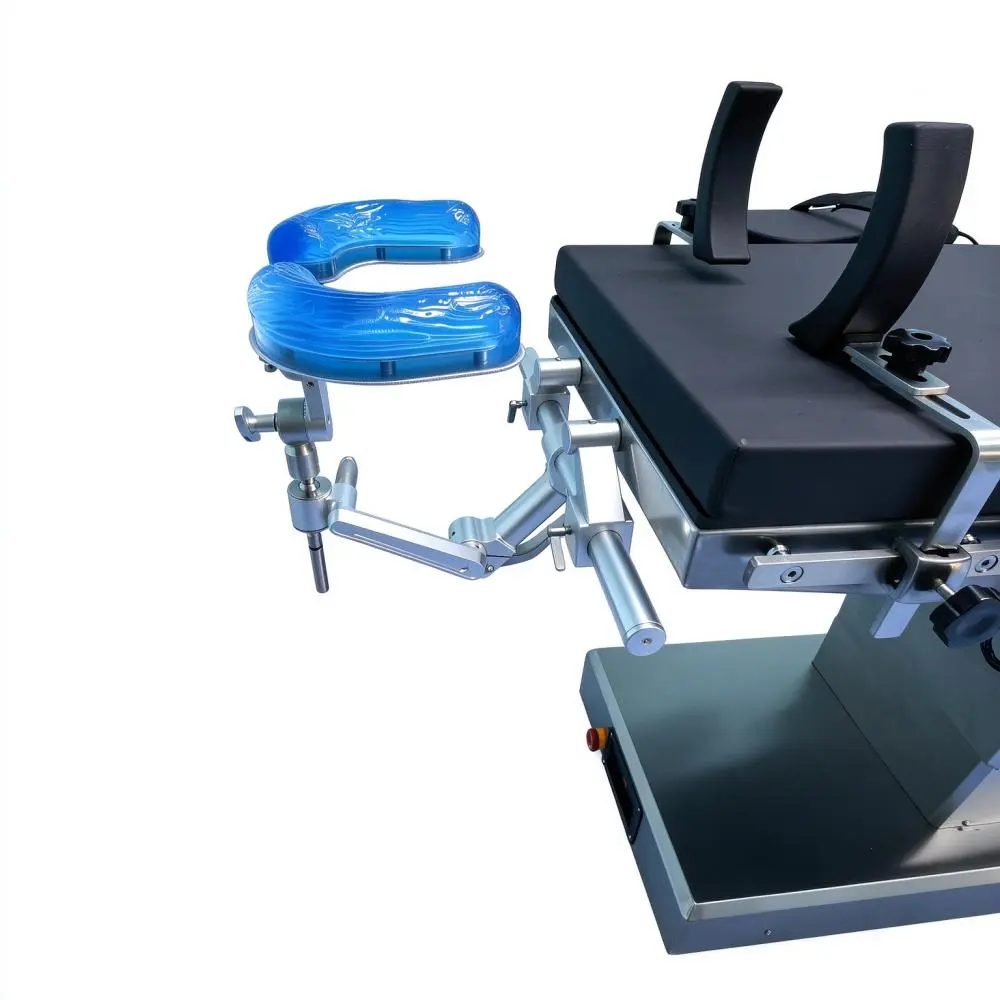

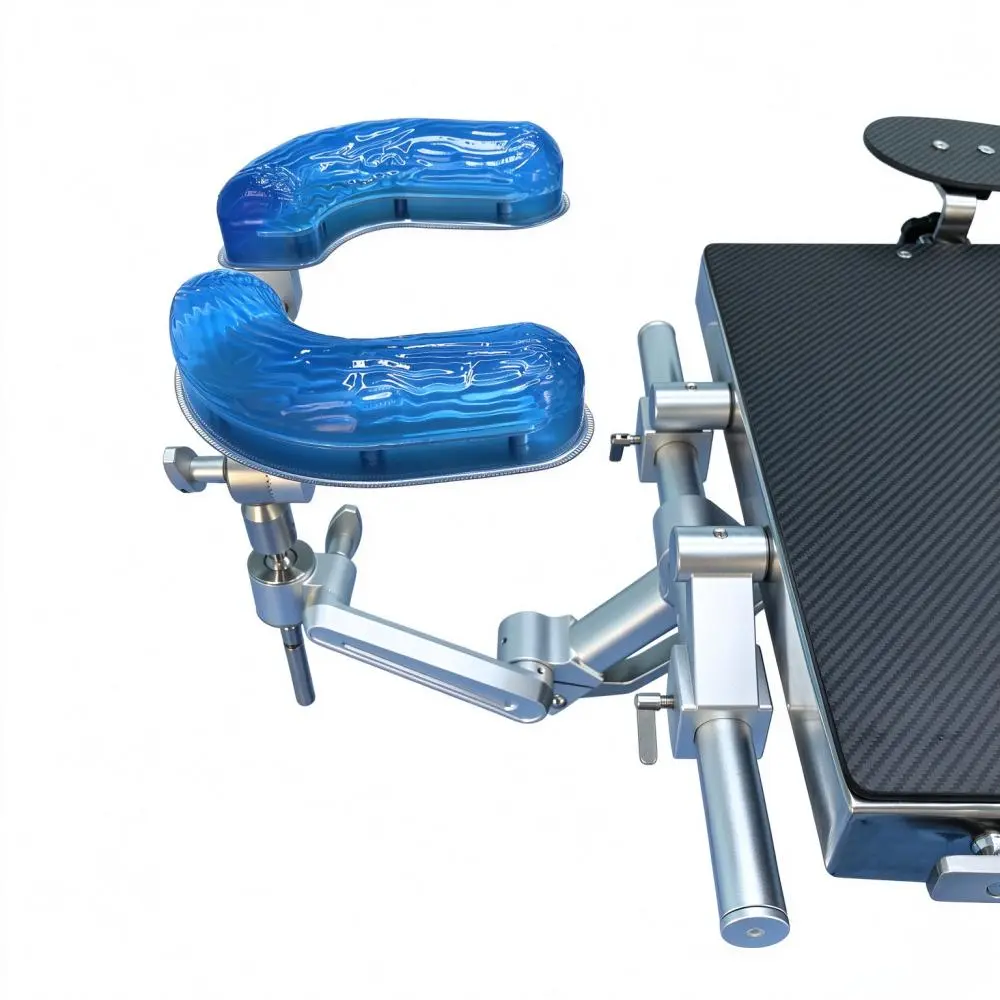

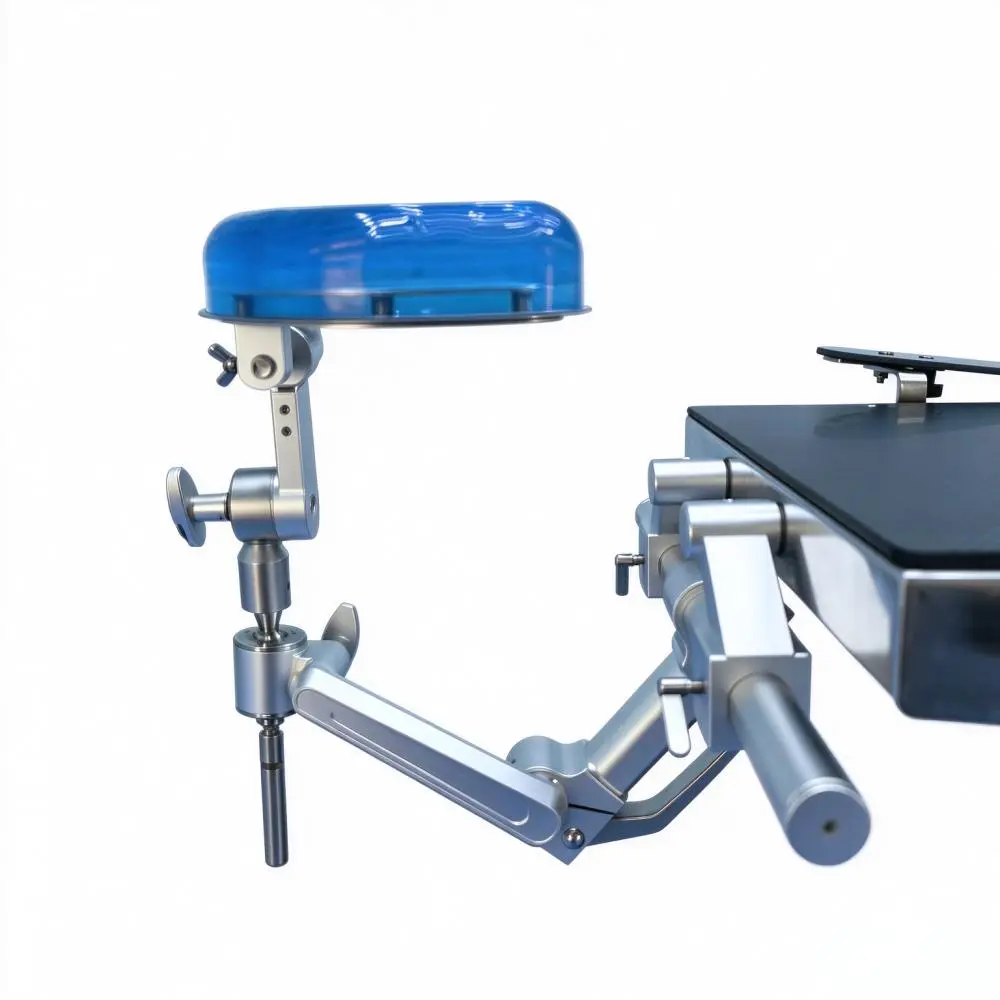

It comes with a dedicated cranial support frame. The operating table with cranial support system offers stable fixation for neurosurgery.
The unit works on 220V power supply. A backup battery supports 40–80 minutes continuous operation when power cuts happen.
Smooth and reliable movements help surgeons obtain clear imaging and precise surgical angles.
Designed for neurosurgery and a full range of general surgeries, this operating table delivers safety and stability for every operation.
Additional information
| Name | Carbon fiber Electric 5-function operating table with cranial support system |
|---|---|
| Head section | Upward tilt ≥45°, downward tilt ≥90°; detachable; manual operation |
| Back section | Upward tilt ≤75°, downward tilt ≥10°; electric operation |
| Kidney bridge | Elevation ≥100mm; manual operation |
| Longitudinal tilt (Trendelenburg/Reverse Trendelenburg) | ≥28° / ≥18°; electric operation |
| Lateral tilt | ≥23° / ≥18°; electric operation |
| Longitudinal shift | 400mm ±20mm; electric operation |
| Leg section | Abduction ≥180°; detachable; manual operation |
| Tabletop dimensions | 2010mm × 500mm ±20mm |
| Tabletop height adjustment | 730mm–980mm ±20mm; electric operation |
| Power supply/rating | 220V/50Hz, 250VA; equipped with backup battery (40–80 minutes of continuous operation) |
| Tabletop panels | Carbon fiber; high X-ray translucency; shock-resistant and electrically insulating |
| Cranial support frame | Equipped with a designated cranial support frame |
