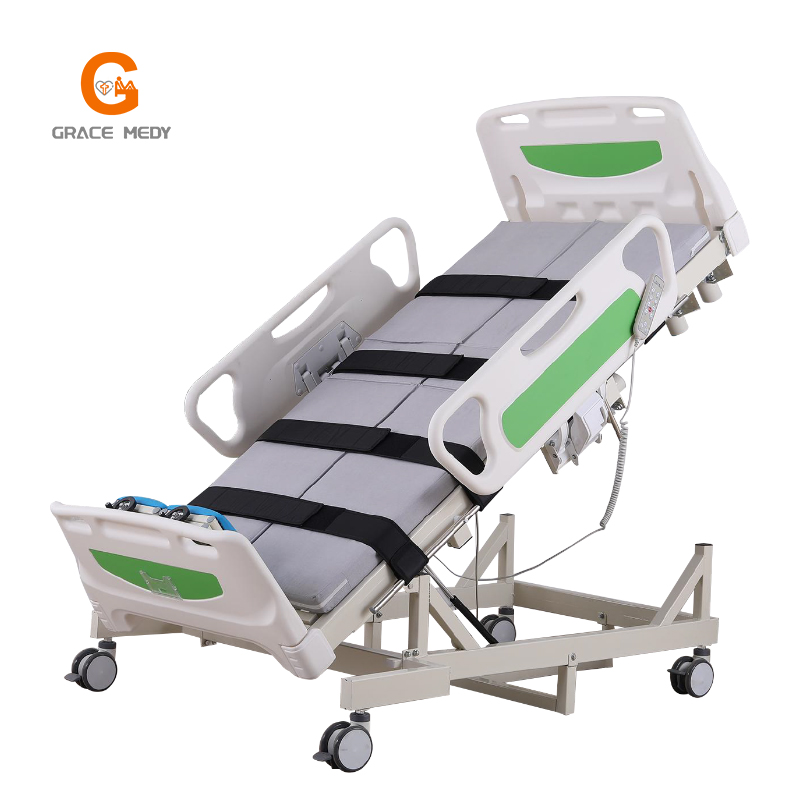

Type C Big Rehabilitation training standing bed
Grace Medy – Premium Rehabilitation Training Standing Beds from a Trusted Manufacturer. Engineered with heavy-duty steel, intelligent angle adjustment, and safety mechanisms for superior patient stability and comfort. As a leading medical device factory, we ensure ISO-certified quality, customizable solutions, and reliable aftersales support. Ideal for hospitals and rehab centers. Contact us for a quote or product demo today!
Type C Big Rehabilitation Training Standing Bed Materials and Craftsmanship
The bed frame is made of high-quality cold-rolled steel.
The footrest assembly consists of an iron frame and upholstered wood panels covered in sponge and artificial leather.
Performance Specifications
Maximum thrust of electric actuators: Standing ≥ 8000N, Back Raising ≥ 6000N, Leg Curling ≥ 6000N, Turning ≥ 6000N
Number of electric actuators: 4
Low-speed actuators are used, enabling slow movement for standing, back raising, turning, and leg curling. The bed's deck should move from horizontal to upright in no less than 30 seconds, and the adjustment time for other deck components should be ≤ 30 seconds.
The controller uses an electric switch, and the hand control controls the system to adjust the bed's angle.
Number of siderails: 2, made of ABS
Number of head and foot rails: 1 each, made of ABS
Number of casters: 4, with single-piece brakes
Number of fastening straps: 4, with quick-release fastening that locks securely and allows for removal and movement.
Number of footrests: 1, adjustable
Number of training tables: 1
Additional information
| Model Specifications | Type C Big Rehabilitation training standing bed |
|---|---|
| External Dimensions | 2130*1260*540±20mm |
| Cover Dimensions | 1960*900±20mm |
| Footboard Dimensions | 490*300±20mm |
| Standing Angle Adjustable Range | 0°-80°±5° |
| Back Lift Angle Adjustable Range | 0°-65°±10° |
| Turning Angle Adjustable Range | 0°-50°±10° |
| Leg Curl Angle Adjustable Range | 0°-30°±5° |
| One-Touch Reset Function | Automatically returns the bed to its original position |
| Emergency Stop Function | Stops bed functions for the patient |
| Mattress | 4cm coir + 2cm latex |
| Power Supply | ~220V 50Hz |
| Power Consumption | ≤400VA |
| Fuse | 4A/250V |
| Noise Rating | ≤60dB(A) |
| Maximum load | 1700N |
