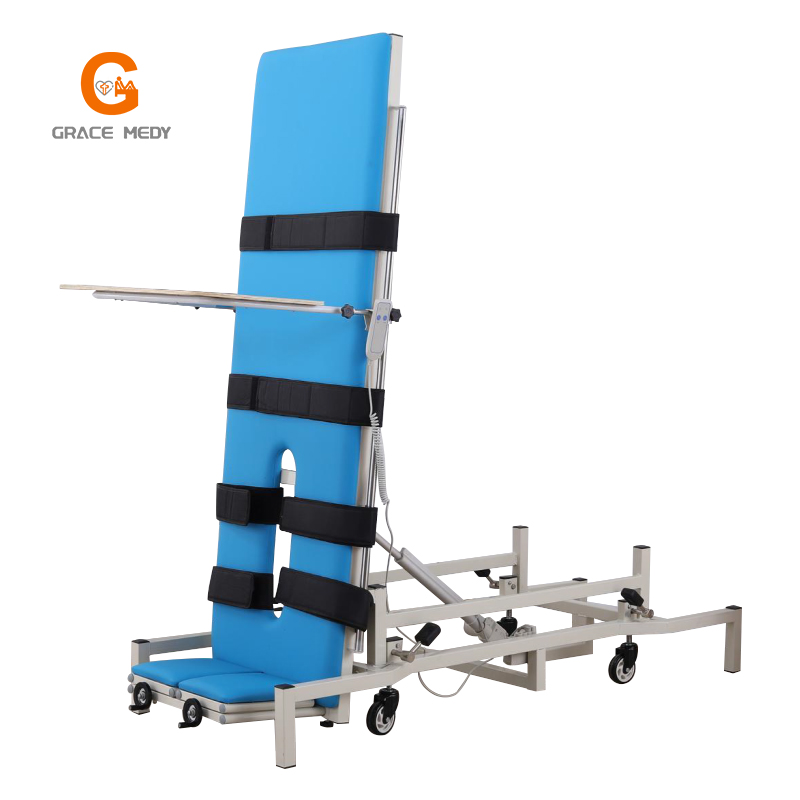

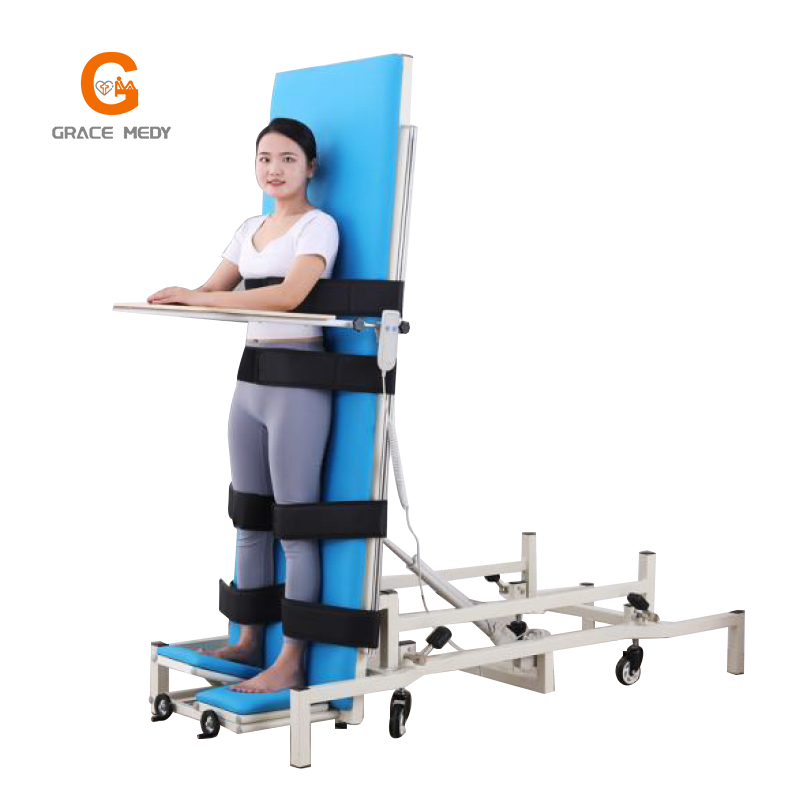

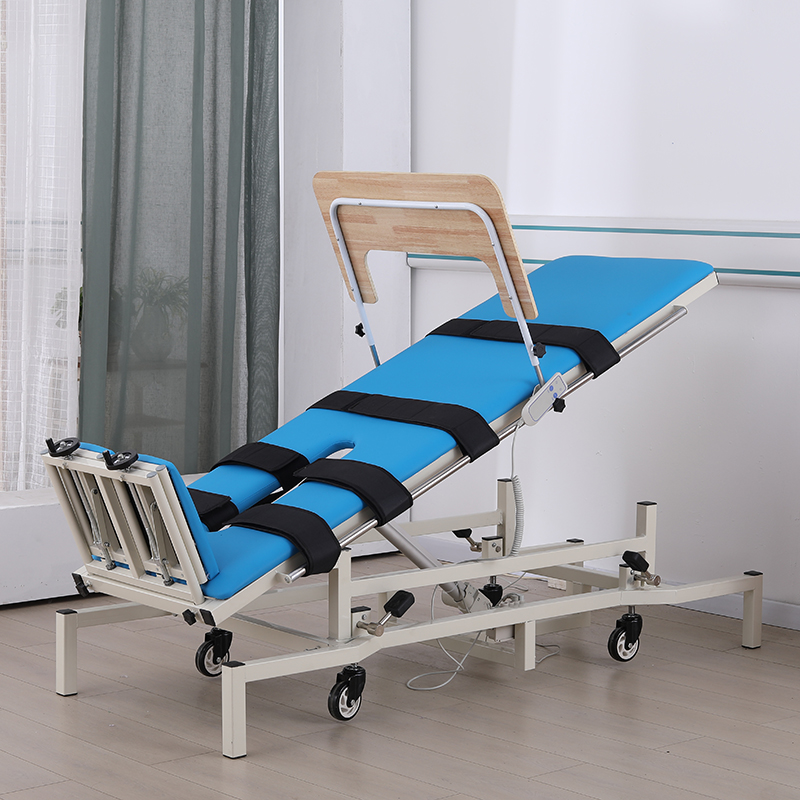

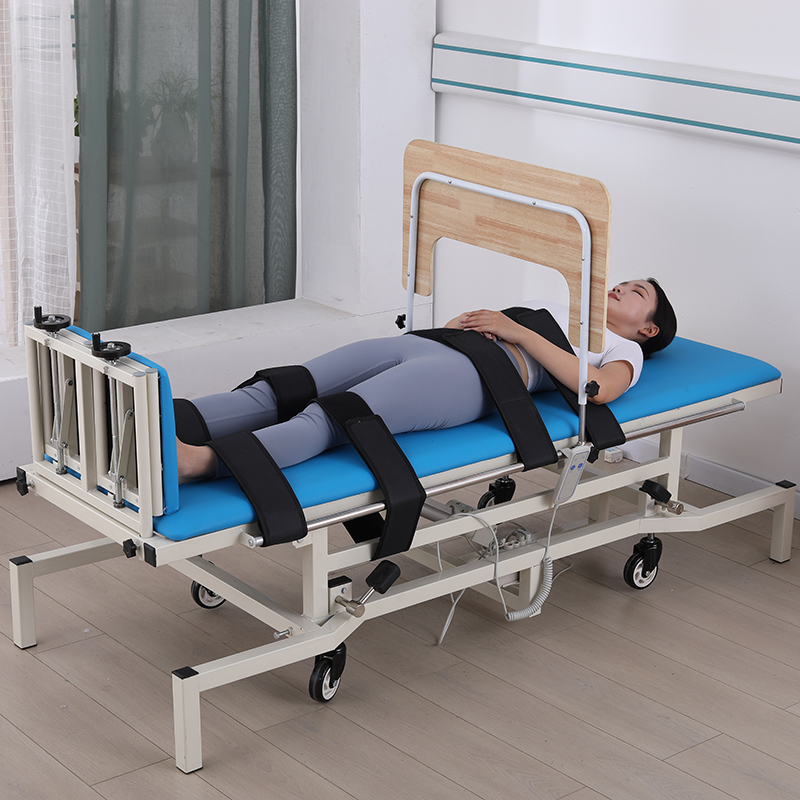

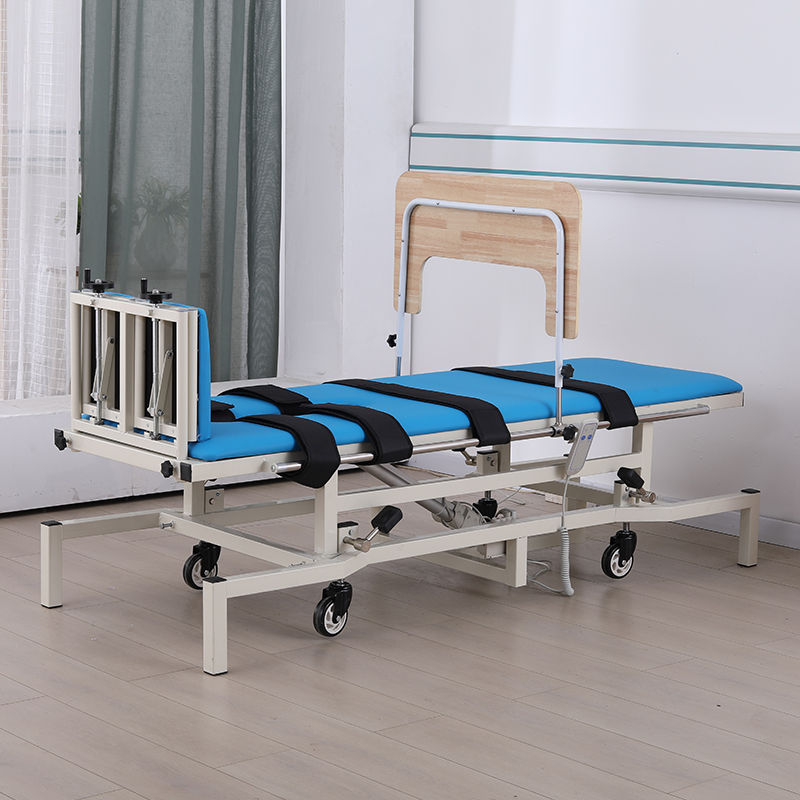

Type E little standing rehabilitation tilt bed
Our standing rehabilitation tilt bed key features include a compact design for home use, quiet operation, simple caregiver controls, and robust safety locks. It is ideal for individuals recovering from spinal cord injuries, strokes, or those managing long-term mobility conditions.
Contact us for a quote and learn more about our OEM options!
Type E little standing rehabilitation tilt bed specification
Materials and Craftsmanship
The bed frame is made of high-quality cold-rolled steel.
The footrest assembly consists of an iron frame and a padded wood panel, which is covered with sponge and artificial leather.
Performance
Maximum thrust of electric actuators: ≥8000N
Number of electric actuators: 1
The electric actuator uses a slow-speed actuator, resulting in a slow standing speed.
The bed's deck should move from horizontal to upright in no less than 30 seconds.
Controller: A momentary control switch and a hand controller are used to adjust the bed's angle.
Emergency stop function: A device that allows the patient to stop the bed's functions.
Number of casters: 4, with lifting wheels.
Number of fixing straps: 4, with a quick-attachment mechanism that locks after being firmly applied and allows for removal and movement.
Number of footrests: 1, adjustable footrest.
Number of training tables: 1
Additional information
| Model | JLL-XLC-D/ZL-1 E |
|---|---|
| External Dimensions | 1900*750*540±20mm |
| Bed Dimensions | 1820*610±20mm |
| Footrest Dimensions | 480*300±20mm |
| Standing Angle Adjustment Range: | 0°-80°±5° |
| Power Supply | ~220V 50Hz |
| Power Consumption | ≤400VA |
| Fuse | 4A/250V |
| Noise Rating | ≤60dB(A) |
| Maximum Load Capacity | 1700N |
