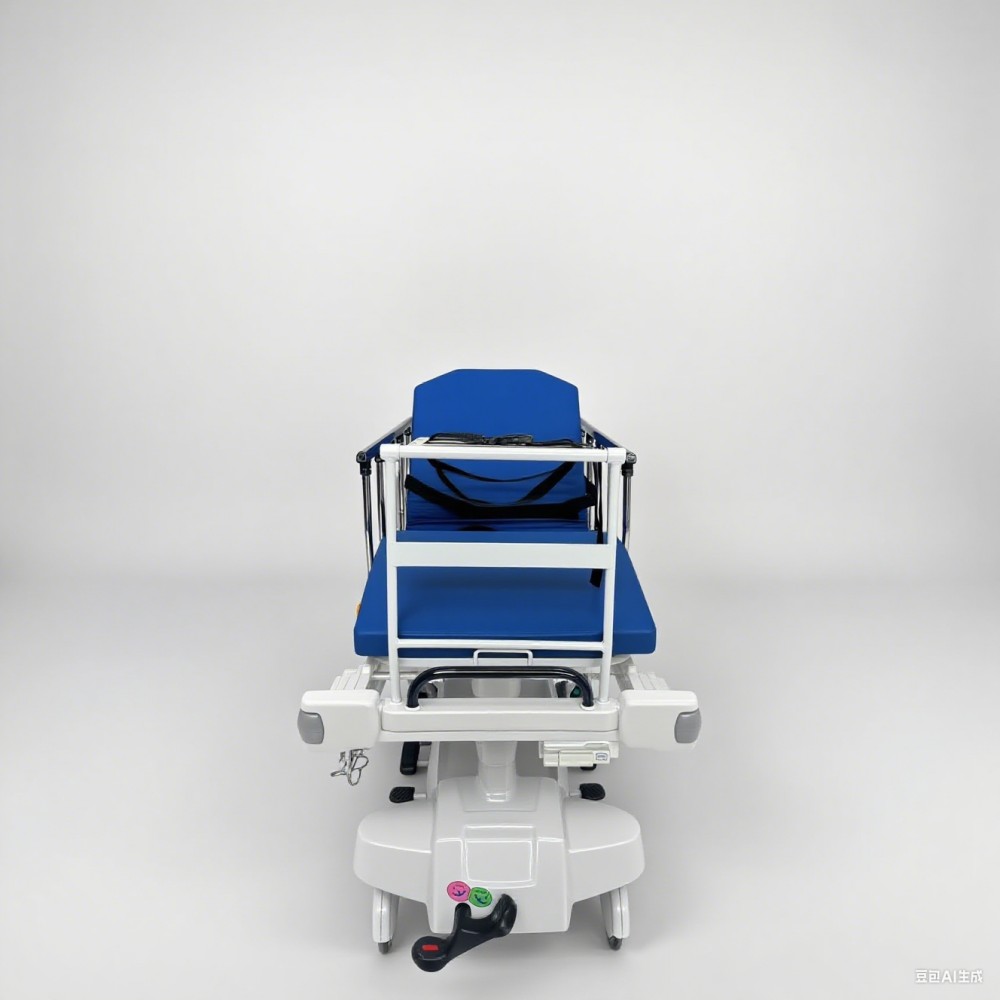

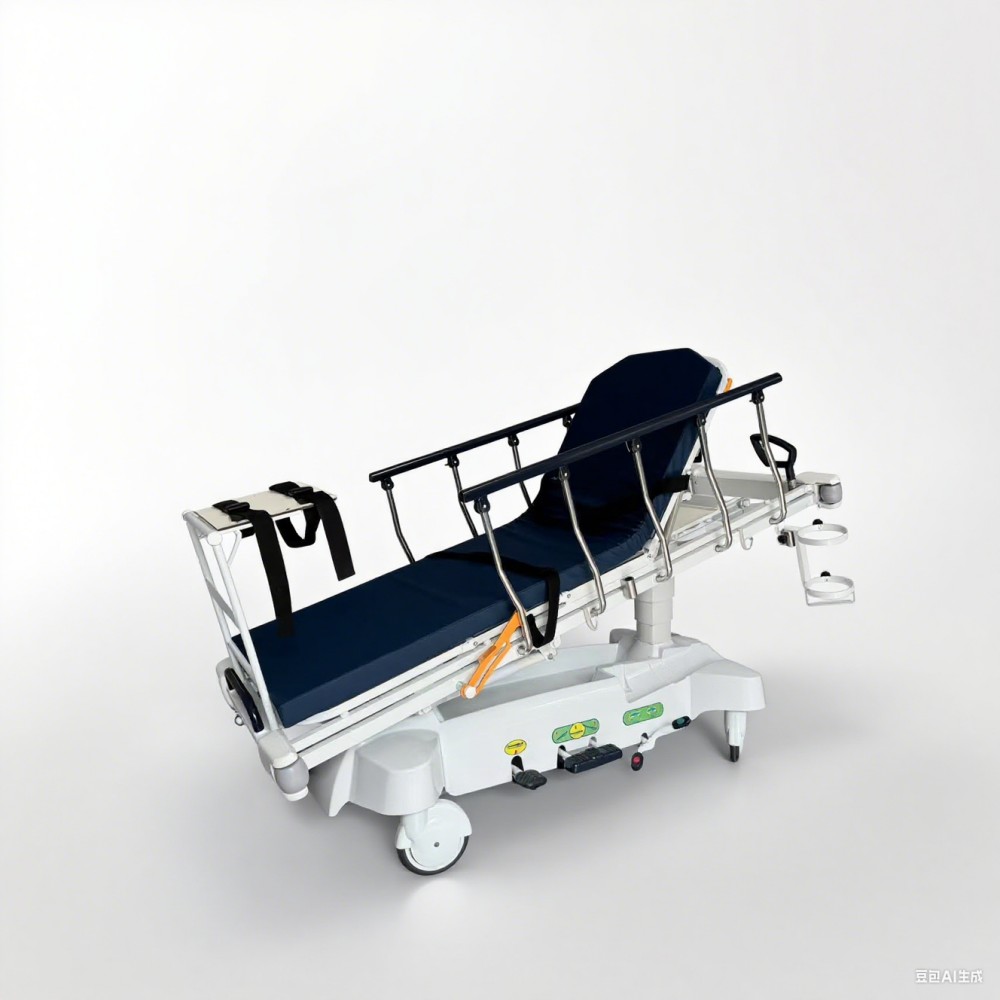

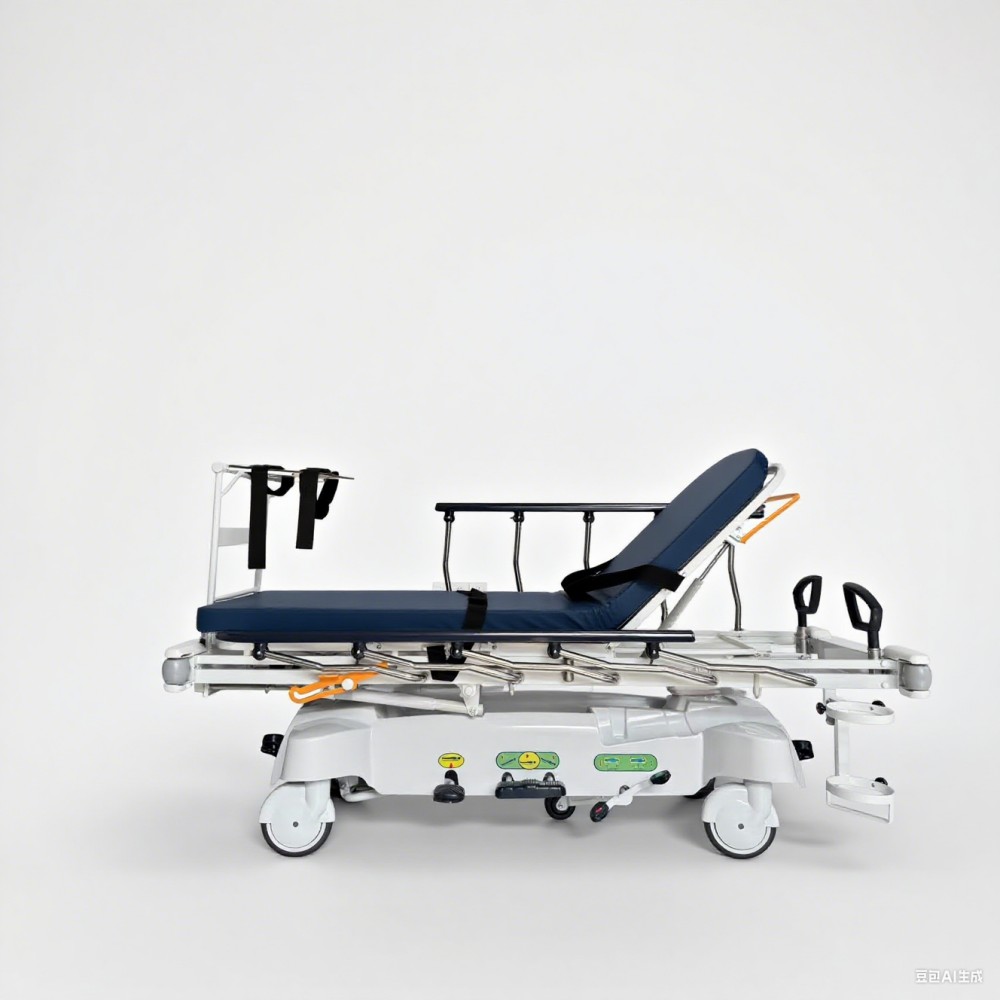

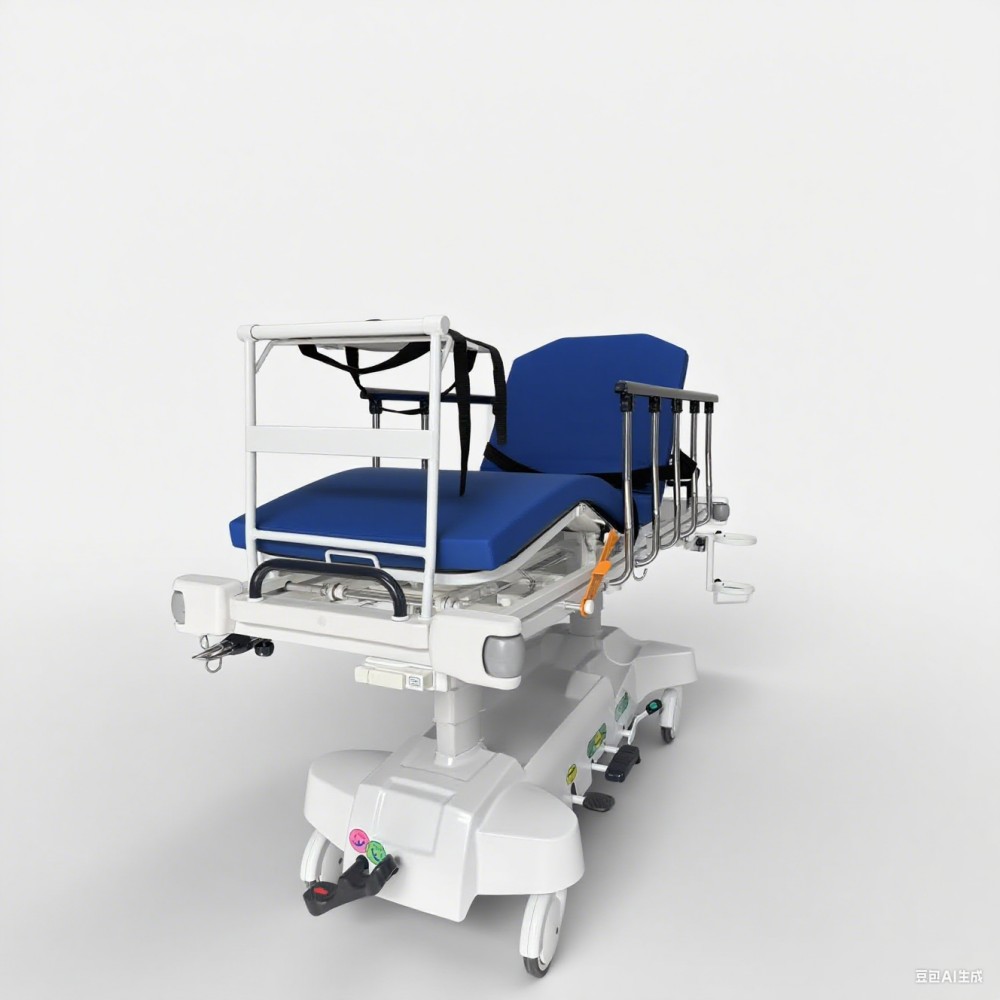

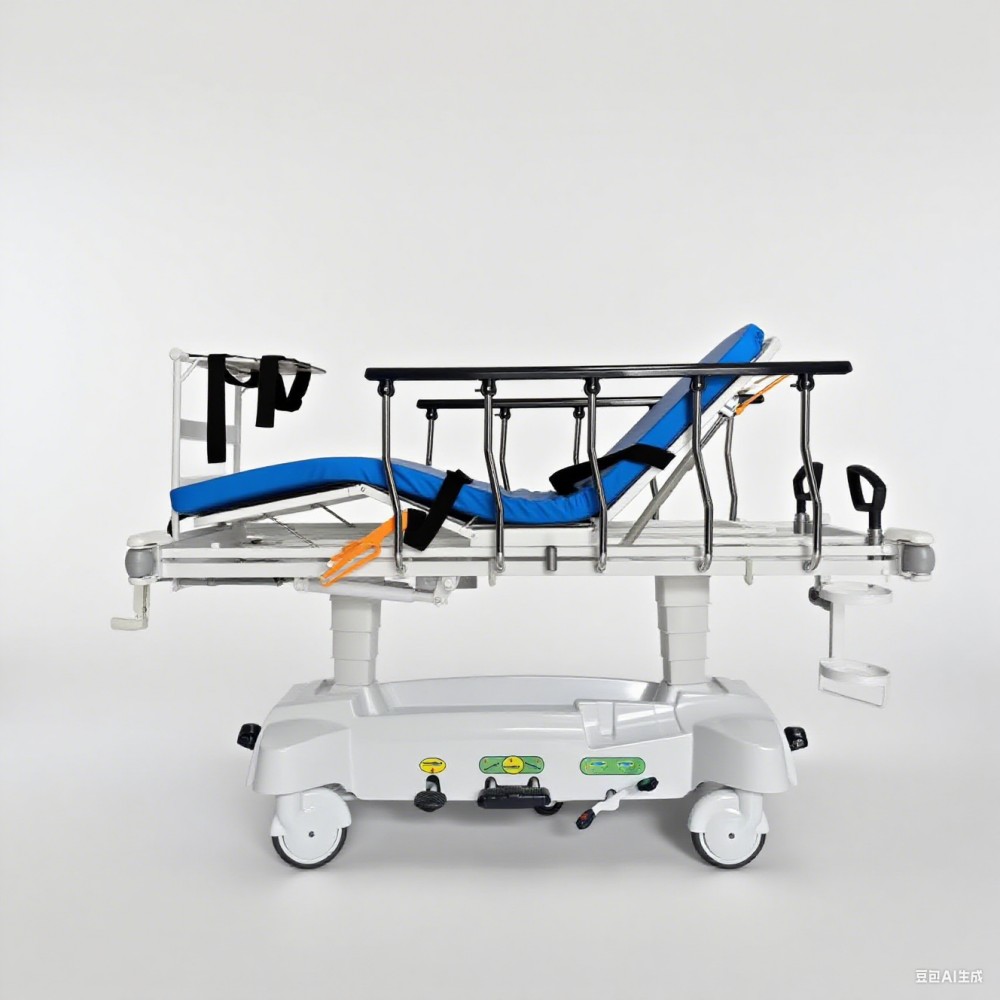

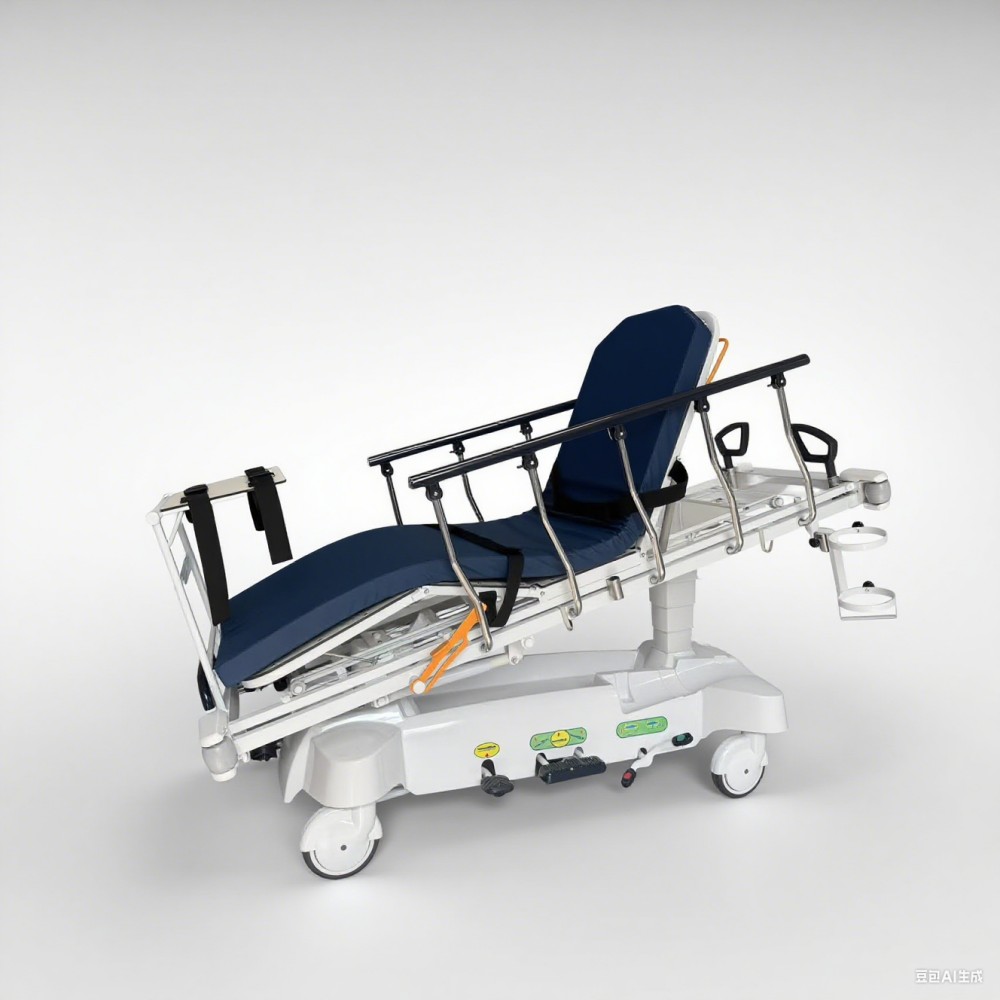

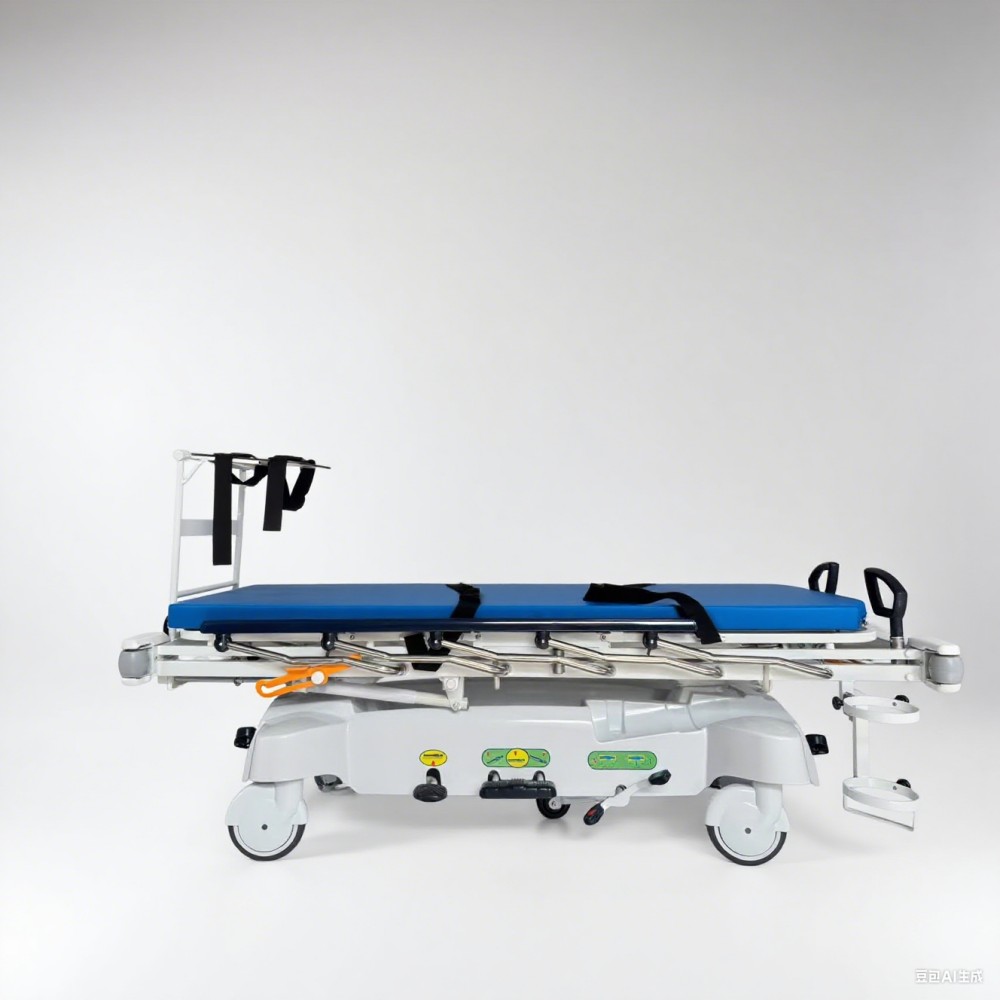

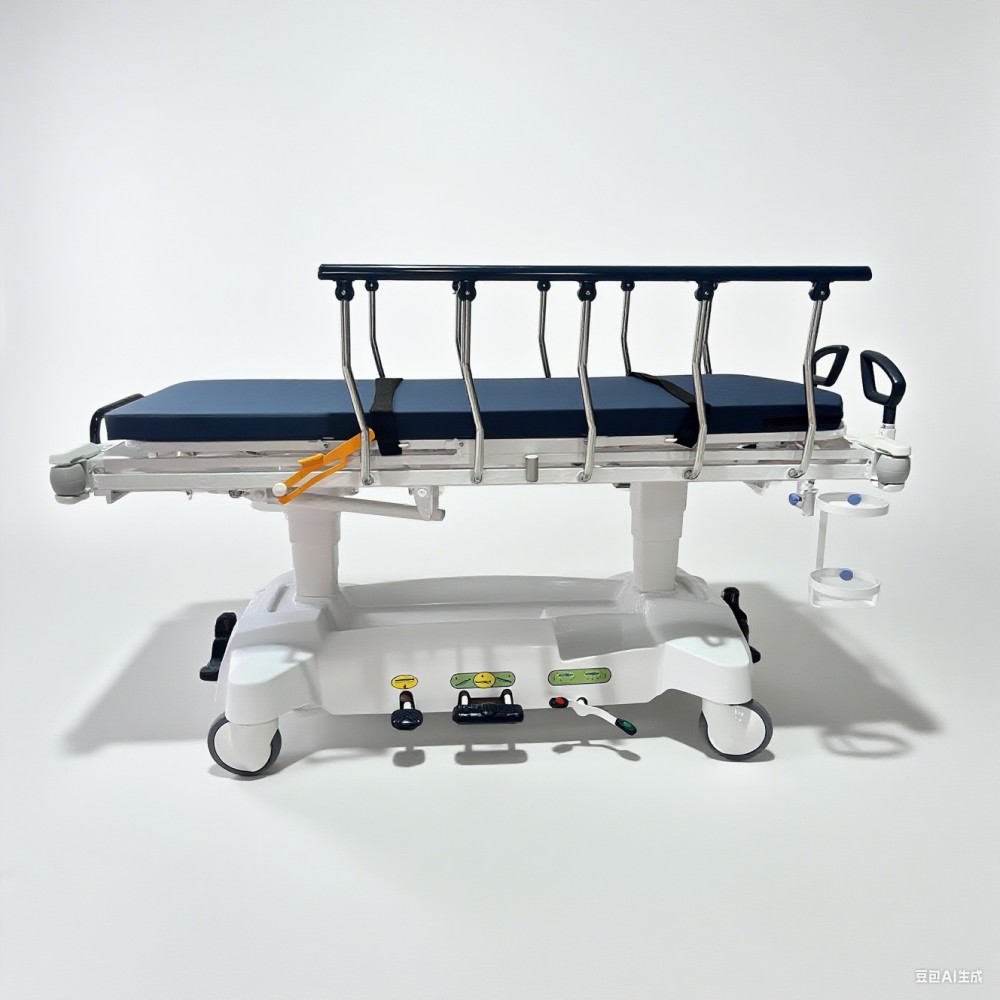

Wholesale Patient Stretcher Trolley
- Our medical wholesale patient stretcher trolleys advantages:
-
Frame: Made of high-quality cold-rolled bright steel, ensuring smoothness, rigidity, and toughness — a key feature in this patient transfer stretcher trolley.
-
Each of the four corners is equipped with an IV pole socket, built with an ABS engineering plastic core for enhanced durability.
-
Guardrails: Integrated inward-retracting S-shaped guardrails with handrails made of aluminum alloy and 304 stainless steel.
-
Casters: Centralized control, silent 200mm diameter wheels. Each wheel offers a load capacity ≥ 120kg. Central brakes at both head and foot ends ensure four-wheel alignment.
The central fifth wheel system uses shock-absorbing 3.5*31.5*105mm compression springs. Control pedals on both sides allow smooth movement when the fifth wheel is retracted — all part of the advanced patient stretcher trolley specification. -
Chassis: Integrated ABS design with convenient oxygen cylinder storage. The tray supports up to 10 kg.
-
Mattress: Sized to fit the medical patient stretcher trolley, featuring a waterproof surface and a 60 mm high-resilience sponge inner layer.
-
Finish: Automotive-grade painting with a dual-coating process including degreasing, derusting, phosphating, electrophoretic epoxy resin layer, and antibacterial electrostatic powder coating — ROHS certified for environmental and hygienic safety.
-
Equipped with a 1.5mm thick 304 stainless steel telescopic IV pole holder in a four-claw design.
-
Optional Features: Weighing function, instrument rack, electric lift, and tilting parallel guardrails — ideal for custom wholesale patient stretcher trolley configurations.
-
Packaging: 1 unit/carton; Dimensions: 2150*870*680mm; Weight: 150 kg.
Materials and features of our wholesale patient stretcher trolleys:
The patient stretcher trolley bed frame features a trapezoidal structure, reflecting the precision engineering expected from a leading patient stretcher trolley manufacturer.
The patient stretcher trolley bed surface consists of three folding sections with HPL bases. The entire base is X-ray-transparent and includes a removable tray for X-ray films and a quick-release handle for CPR positioning.
The crank handle is made of pure ABS engineering plastic with a concealed foldable design. The telescopic rocker is constructed from aluminum alloy and a steel universal joint.
The screw system employs two-way limitless position protection with a wall thickness of ≥1.2mm. A refined copper nut integrated into the screw ensures quiet, wear-resistant operation. The lead screw is made of 45-grade steel with double-wire extrusion and includes an ABS dust cover.
Two IV stand sockets are located on each side of the bed center. A durable two-stage stainless steel IV stand is included and can be tilted toward the headboard when not in use. Anti-collision wheels on all four corners help reduce impact — a signature innovation in our role as a reliable patient stretcher trolley supplier.
The two-stage IV stand has a 19mm diameter for enhanced durability.
Mattress anti-slip ribs are installed at both ends to prevent shifting when the bed is adjusted.
Stainless steel guardrails are easy to clean and built with five movable joints, offering wear resistance, self-lubrication, and silent operation while improving patient safety.
The hydraulic lift system uses an imported pump for stable and quiet performance, even under prolonged load.
The blow-molded PP engineering plastic bottom cover includes built-in storage for oxygen cylinders.
The 8-inch centrally controlled casters are silent, wear-resistant, and fully enclosed with self-lubricating bearings.
A one-touch central brake ensures four-wheel alignment and smooth operation.
A 6cm thick all-foam mattress with premium PU waterproof cover offers comfort and easy cleaning.
Front and rear handles facilitate transport, and anti-collision wheels on all corners protect the bed from damage.
The center guide wheel enhances mobility and reduces effort for healthcare staff — a key advantage in the competitive patient transfer stretcher trolley market.
Welding is performed using imported robotic systems for deep penetration and high strength, with full anti-rust treatment and no sharp edges or burrs. The bed is fully reinforced for safety and reliability.
This model is available for wholesale patient stretcher trolley orders and can be customized with optional features.
Additional information
| Size | Length2140*width810 (net width of bed 620)*height 680-980mm |
|---|---|
| Backrest | 0-75 degrees |
| leg lift | 0-45 degrees |
| overall forward tilt | 0-15 degrees |
| overall rearward tilt | 0-15 degrees |
| Bed load capacity | 250 kg |
| bed weight | ≥ 100 kg |
| Brake | One-touch central braking system |
